By Garry Stockton
Levels or Grids - which come first?
When creating a grid in Revit, it is more efficient to use the Offset option while creating a new Grid line, rather than the copy command, unless you only want a Reference view and not a Floor or Ceiling plan view.
If you use copy to create a new view and you decide that you do ultimately need a floor or ceiling plan, then you will need to us the Plan View tool on the View tab to generate the view for a floor or ceiling plan.
When creating Levels and Grids it is a good idea to draw your levels first to ensure that your grid lines pass through all the grids lines that your project needs.
If you add a Level after your Grid lines and the new Level is beyond the 3D bubble of your Grid line, it will not show up on the associated plan view levels.

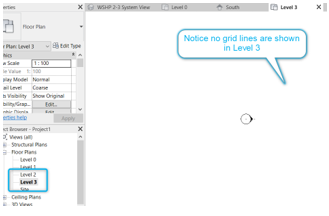

Level 3 was added after the Grid lines were drawn. Level 3 is beyond the 3D bubble of the Grid lines, so the Grid line does not cross the plan of the level and does not display in the Level 3 view.
