You can add supplemental text above, below, to the left or right of a permanent dimension value.
- In the drawing area, select the dimension you want to edit.

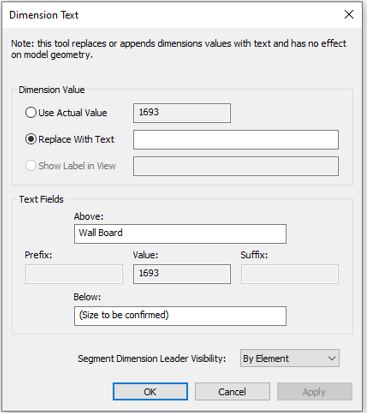

- Double click on the dimension value. The Dimension Text dialog displays.
- In the Dimension Value field, select Use Actual Value.
- Enter the text you want to display in the Above, Below, Prefix and/or Suffix text fields.
Note:You do not need to enter text in all fields, only those you require. - Click OK.

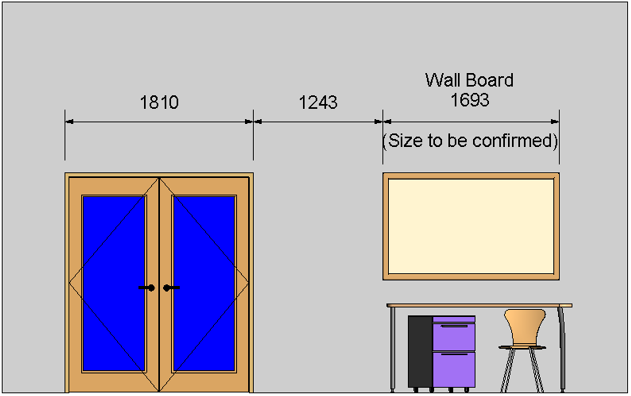

Edit Dimension Text (supplemental text notes added)
Illustration of Edited Dimension String
Tip: Alternatively, you can select ‘replace with text’ instead of ‘actual value’ in the dimension text dialog box. This will replace the dimension value with a text note you write.
