By Garry Stockton
Measuring Round or Oval objects

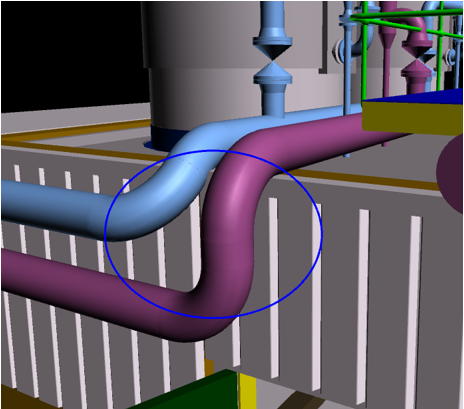

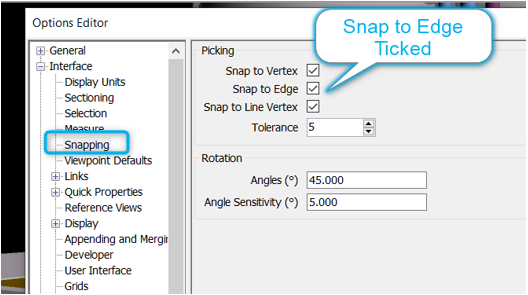

If you’re having problems measuring round or oval objects accurately, such as the bottom sides of pipes, turn on Edge Snapping. Go to Navisworks Options Editor and under Interface, select Snapping, make sure ‘Snap to Edge’ is ticked. This will allow you to snap your measurement tool to the edges of vectors, which is usually located on the bottom and topmost sides of your shaped objects.
