After enjoying one of our many ‘how to’ videos on Cadline community, a customer asked whether it was possible to reduce the number of points in a surface. In response we have put together a quick step by step in answer to this question.
Step 1

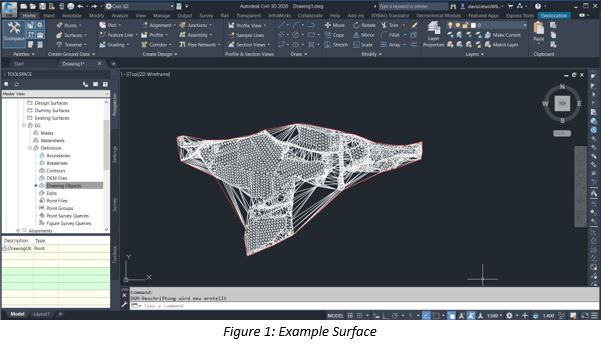

Create the surface.
Step 2
Access the Edit surface Tool by selecting the surface and taking advantage of the contextual ribbon.
Step 3

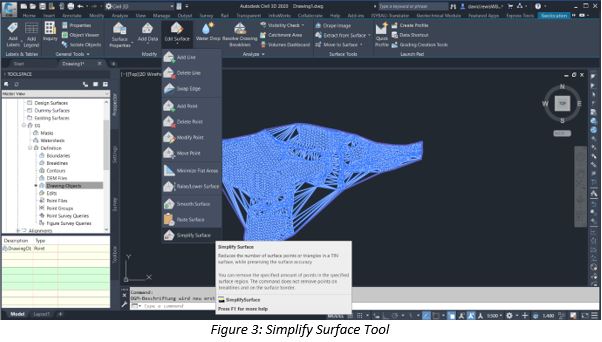

From the Edit surface drop down menu choose Simplify surface.
This will open the simplify surface wizard.
Step 4
For the simplify method choose the point removal option and choose Next.
Step 5
For Reduction Option move the slider to select the percentage of reduction. In this example I will use 95% to demonstrate the impact on the surface. I will also change the maximum change in level to 0.5 so the change is clear.
Note: This is an extreme example of the use of the tool in this situation and not necessarily the percentage and level changes that we would advise.
Step 6

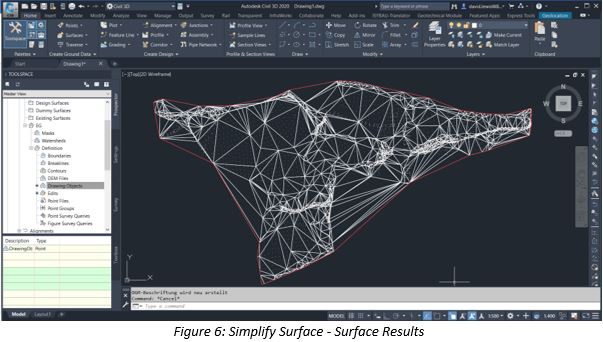

After the values have been defined in the Simplify Surface: Reduction options select apply then Finish to view the results.
