By Miles Nicholson
Dynamic block authoring is really useful to make a symbol inserted into a drawing adaptable on the fly.
As an example, the image below shows a symbol where you may want to stretch one end of the symbol:

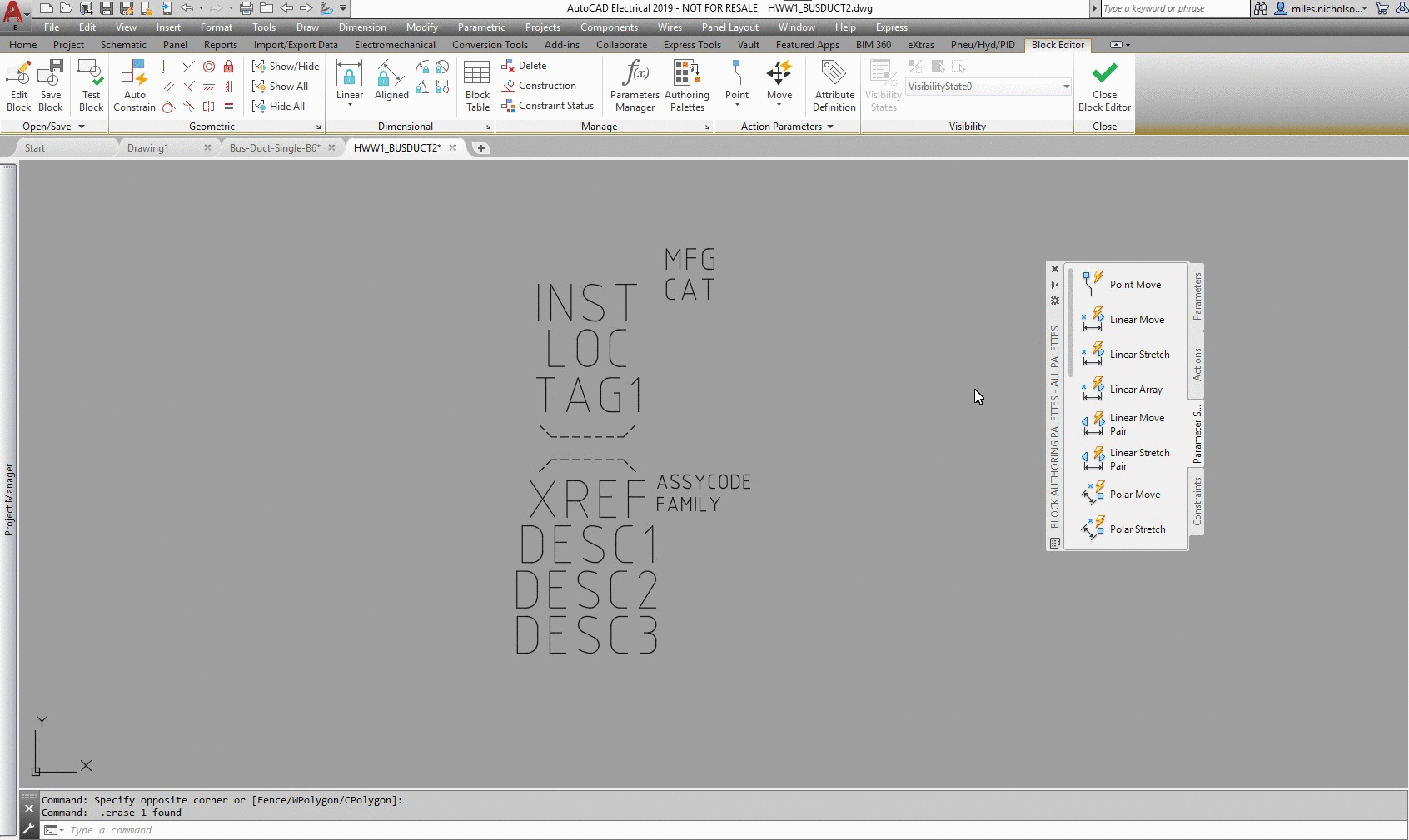

When creating the block, a Linear Stretch - Parameter Set should be used:
The video shows you how to define the parameter set and the objects selected for stretching.
- The label can be edited by double clicking if you wish to change
- Multiple actions can be created within a symbol
