The Split Table tool can be used for a parts list, hole, revision or general table, and the resulting child table can be moved to a new sheet.

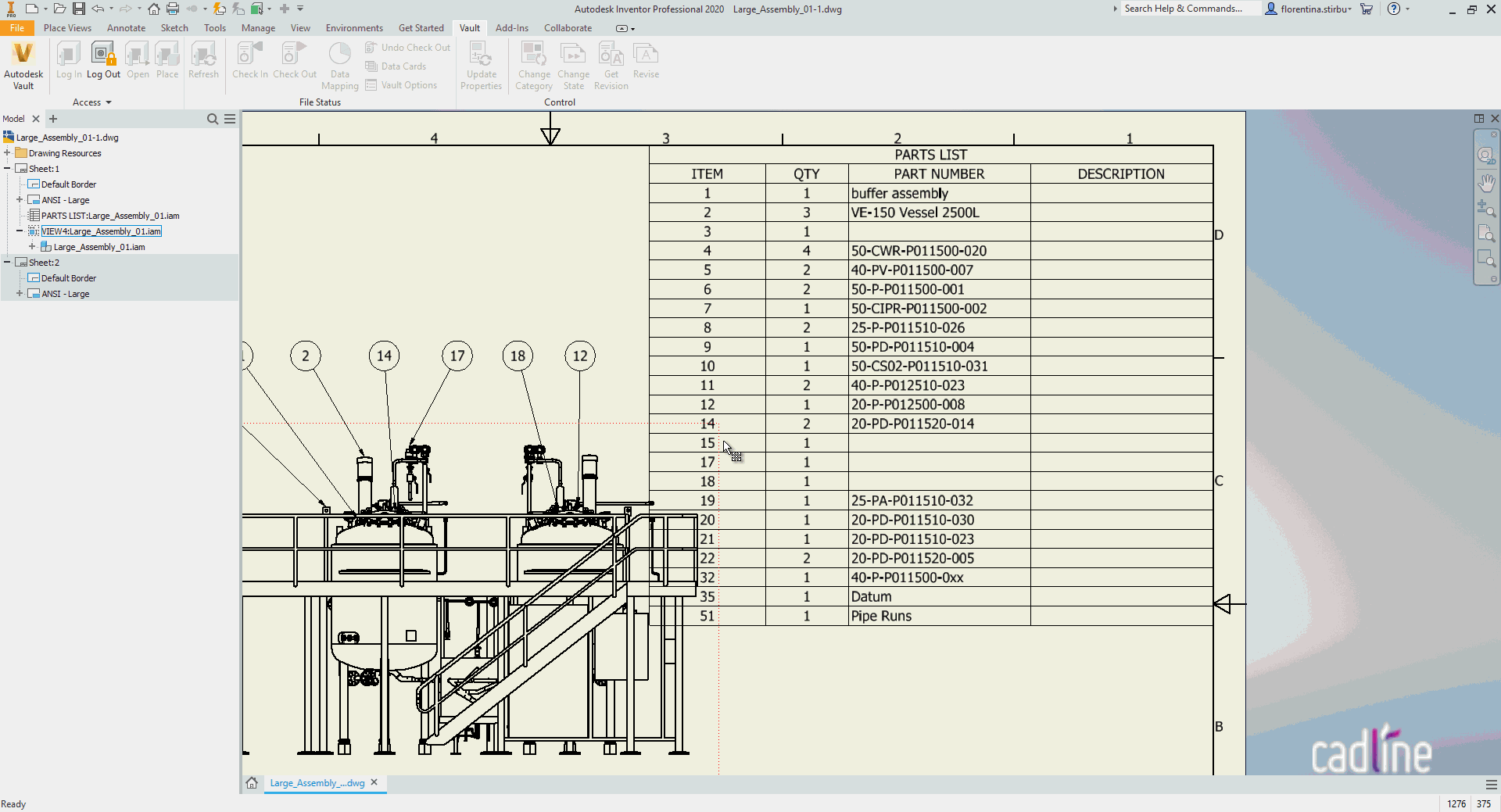

- Right click on the cell where you want to split the table
(Note: If you right click on the border, the “Split Table” option will be greyed out!). - Select Table -> Split table.
- In the browser, the new table is displayed as a child of the parent table. Drag and drop it to the other sheet.
- If you wish to Un-split the table, right click either the parent or the child and select Table-> Un-split Table.
