By Miles Nicholson

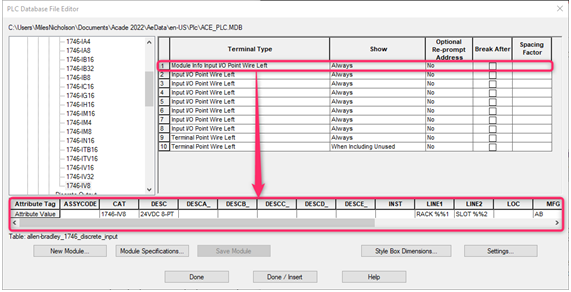

Within AutoCAD Electrical, you can create and modify PLC modules within the PLC Database File Editor. The PLC selection list uses an expandable and collapsible tree structure for the PLC categories. These PLC categories are: Manufacturer, Series, Type and Part Number. The tree structure supports right-click controls for copying, renaming, deleting and creating PLC data and shows the terminal/connection attribute information in the lower half of the dialogue.

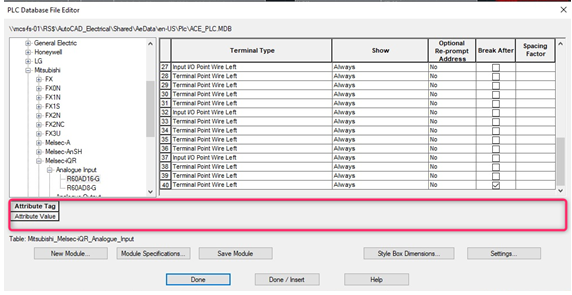

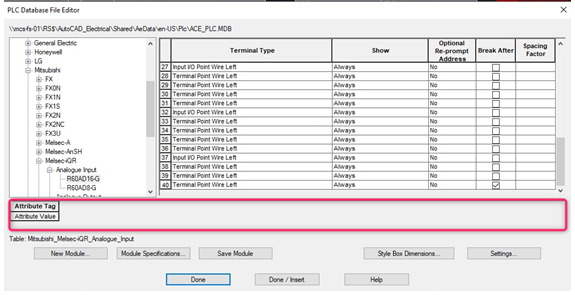

If you are editing the PLC database and your terminal/connection information is empty…
…then the resolution to show the information is a very simple adjustment.
Exit the PLC Database File Editor.
Right click over the current activated project > Properties > Project Settings tab >.
Expand the Schematic Libraries paths and ensure the paths point to the correct library location.
e.g. C:\Users\Public\Documents\Autodesk\Acade 2022\Libs\iec2
