by Miles Nicholson

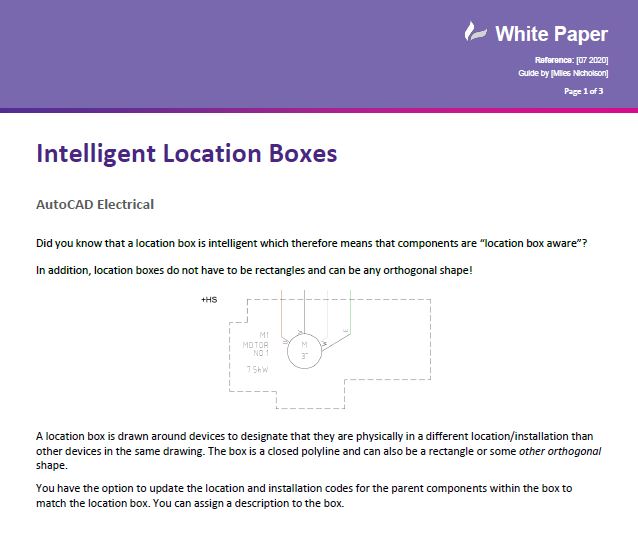

Did you know that a location box is intelligent which therefore means that components are “location box aware”?
In addition location boxes do not have to be rectangles and can be any orthogonal shape! A location box is drawn around devices to designate that they are physically in a different location/installation than other devices in the same drawing. The box is a closed polyline and can also be a rectangle or some other orthogonal shape.
