By Miles Nicholson

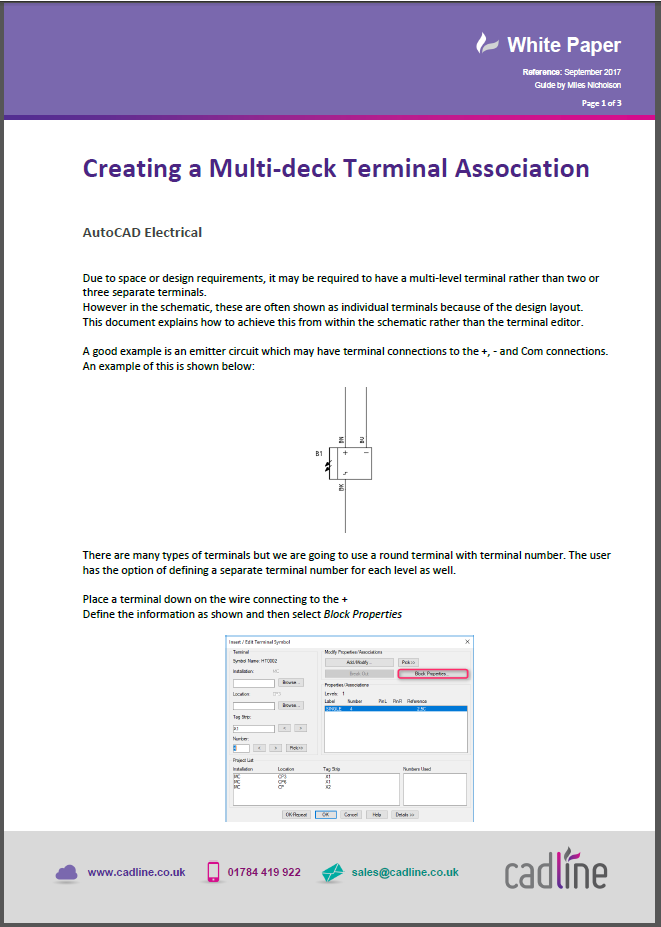

Due to space or design requirements, it may be required to have a multi-level terminal rather than two or three separate terminals. However in the schematic, these are often shown as individual terminals because of the design layout.

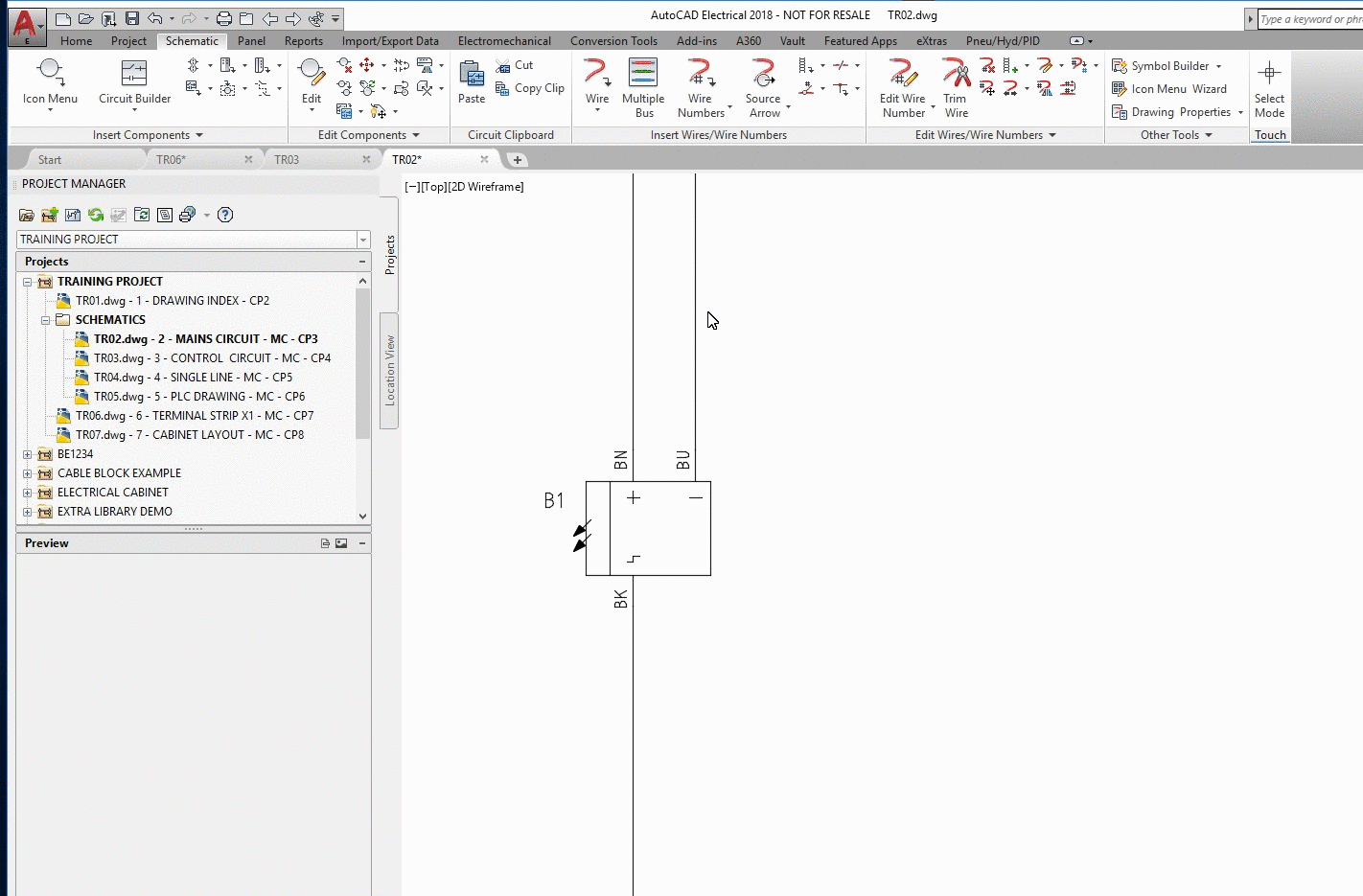

This document explains how to achieve this from within the schematic rather than the terminal editor.
