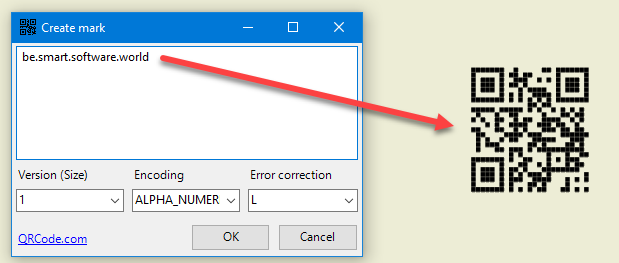

You can use the QRcode command in the Be.Smart T4I add-on application by ARKANCE to add dynamic QR codes to your drawings in Autodesk Inventor. This command can convert a text (any static text or a dynamic iProperty value) to a QR code image (a machine-readable black-and-white square matrix). You can find it in the T4I > Annotations ribbon. To insert and display the individual QR code in a drawing, a sketched symbol with a graphic representation of the QR code is used. Internally, this symbol consists of specially formatted texts,

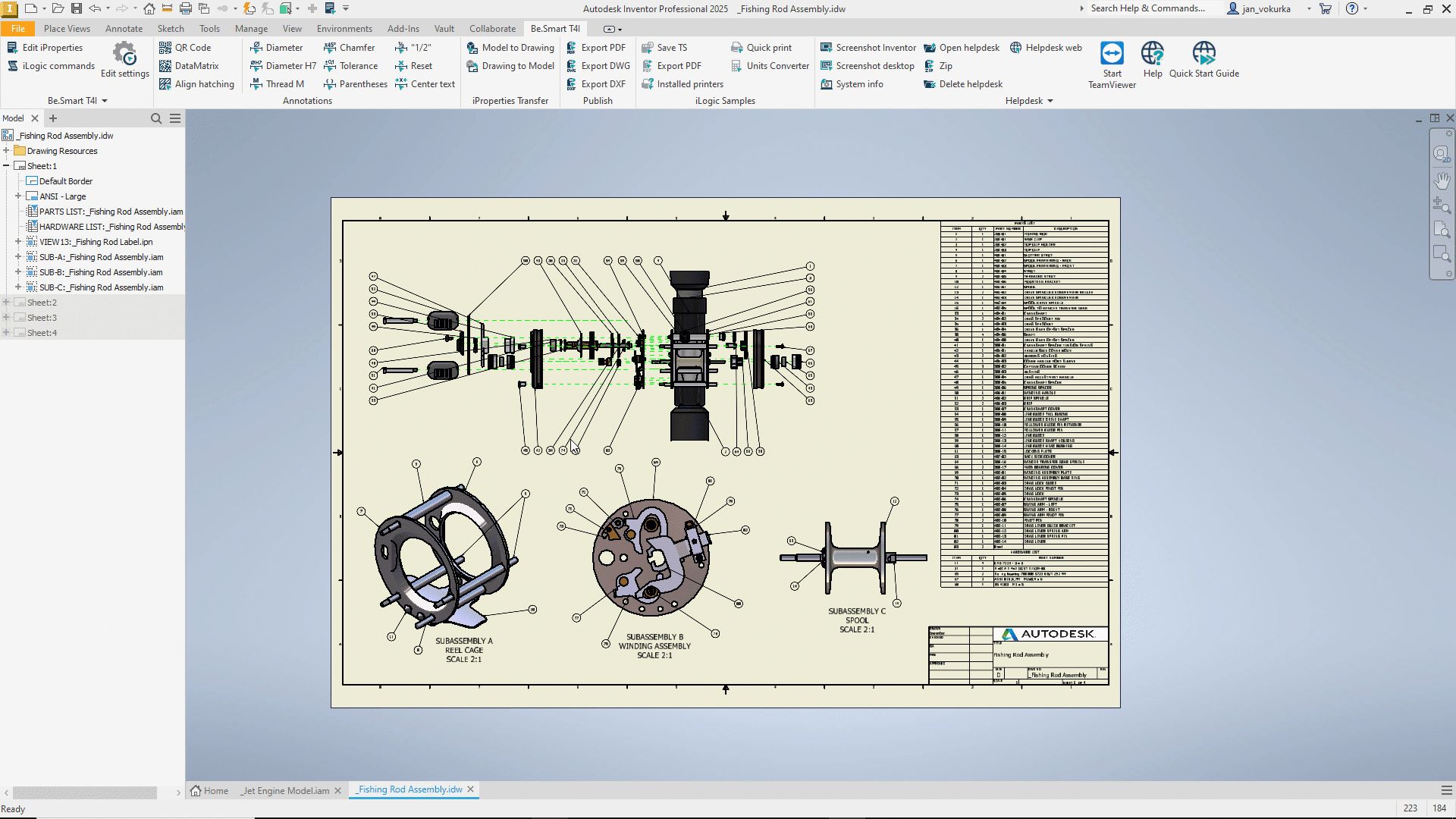

To insert a static or dynamic QRcode in your drawing sheet, perform the following steps:
- Run the command from the ribbon.
- Enter the text to be converted or refer an iProperty:
=<iProperty Name>). - Select the Size, Encoding, and Error correction for the QR code.
- Confirm with OK.
- Move the QR code from the initial position (bottom left corner of the drawing) to its final location.
More information:
https://help.besmart.software/t4i/commands-overview/annotations/qr-code
https://arkance.world/gb-en/products/be-smart/manufacturing/t4i
