The Reverse Return arrangement is useful in Services Layouts. It is used for connecting modular components such as Radiators, Cooling Coils etc. to ensure that there is approximately equal flow/resistance through each component as opposed to a Parallel, or Direct Return system which tends to favour the first emitter and potentially short circuits the flow to the hydronic units further downstream.

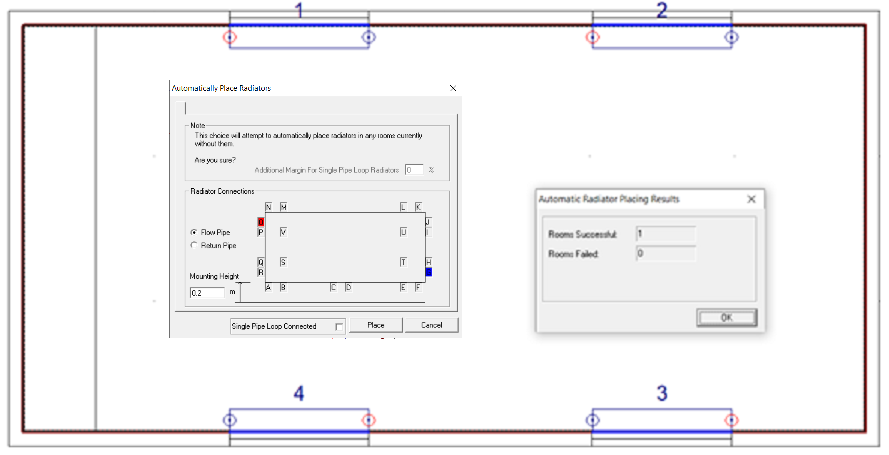

To demonstrate I will populate a single room with 4 radiators using “Autoplace Radiators”.
Clicking on “Place” puts a radiator under each window and indicates the success and room failure rate.

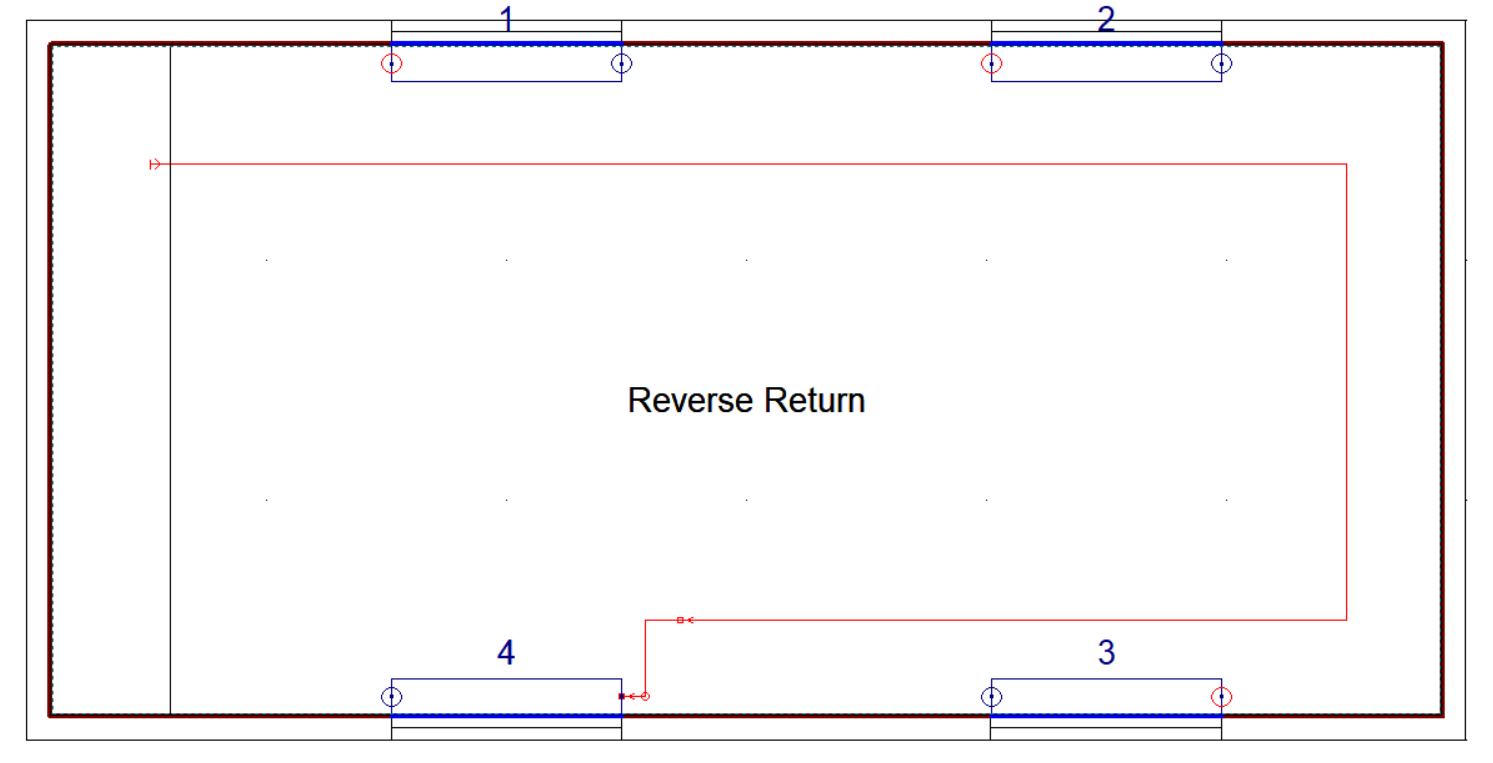

Next, connect a Flow pipe to the radiator furthest away from the Entry Point, see below.

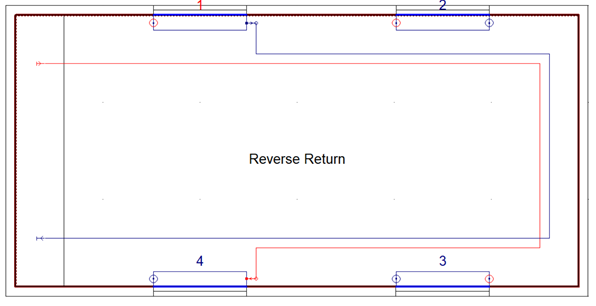

Then, connect a return pipe to the radiator furthest from the Return Exit Point, as below. N.B. Do not use “Edit>Clone Returns” feature, as this follows the route of the Flow pipes creating a Parallel Flow & Return system, which is not what this article is about.

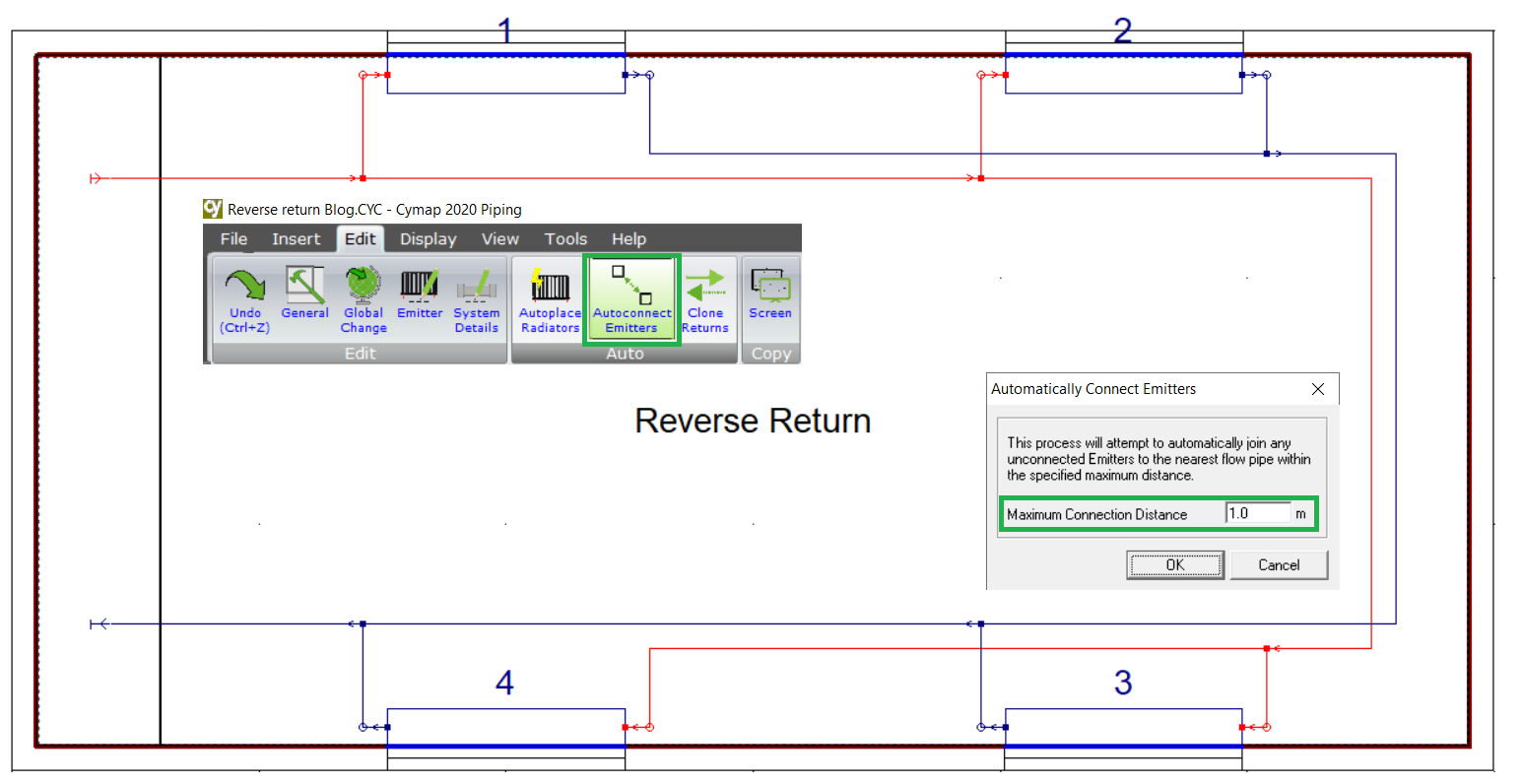

Then use “Autoconnect Emitters”. Leave the Maximum Connection Distance as 1.0 m as this will be sufficient in this case.
This completes a simple reverse return system. To summarise, Radiator 1 has a short Flow, but a long Return and Radiator 4 has a long Flow but a short Return. So all Radiators have a similar length of connecting pipes and hence easier to balance.
Closing Question - Which Radiator would form the Index Circuit or would they all have equal circuit resistances?
