by David Wren
A new addition to MEPworx 2025 is the Aragog viewer, which enables allows the User to view, validate and edit gbXML data.

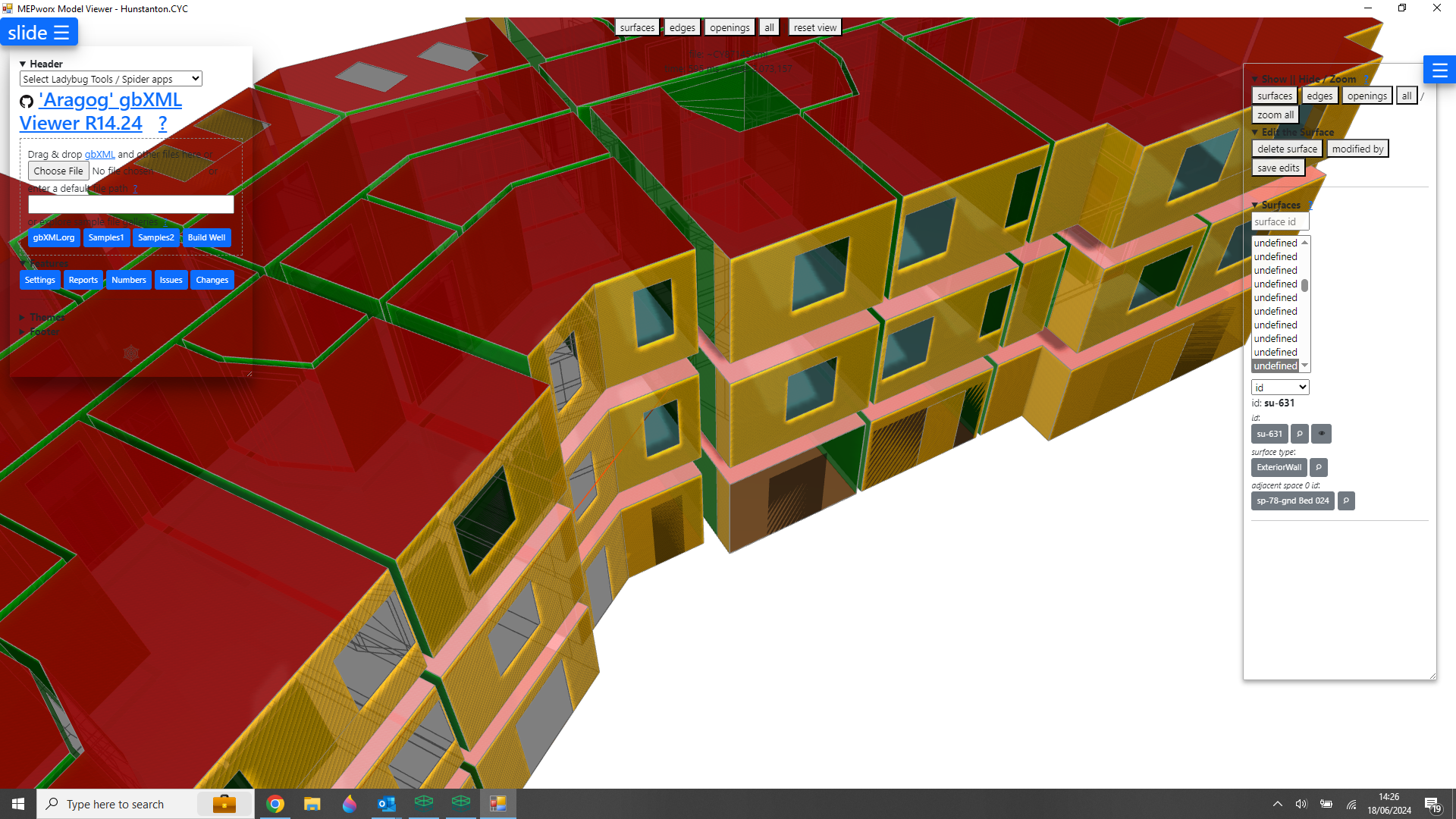

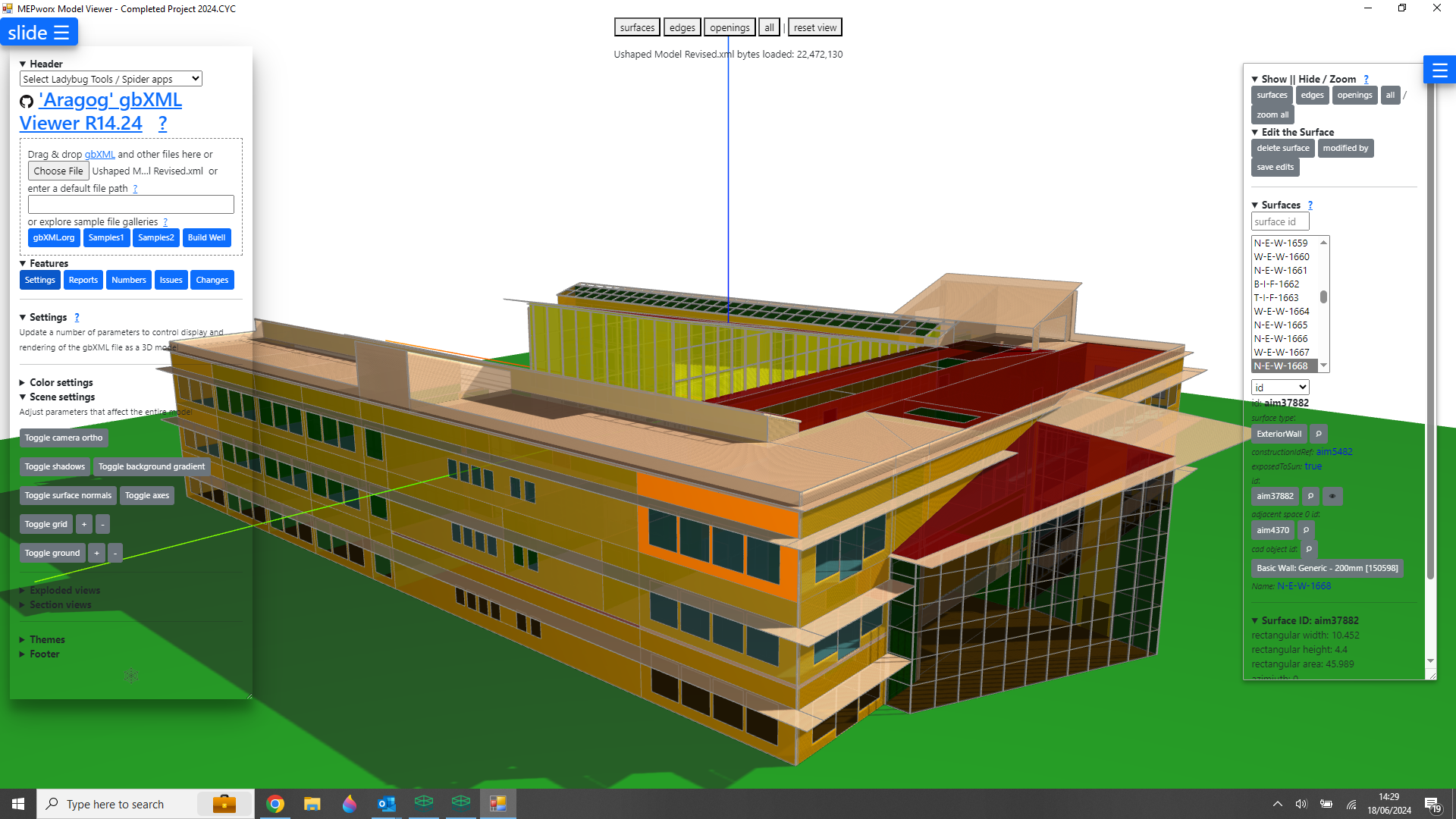

This assists you to view in 3D, the prospective gbXML data prior to and/or after loading the data into your project. Building model 'Spaces' as defined in MEPworx, can also be viewed in Aragog.
We use the Open Source industry standard Aragog 3D viewer to analyse all aspects of the building model’s gbXML geometry.

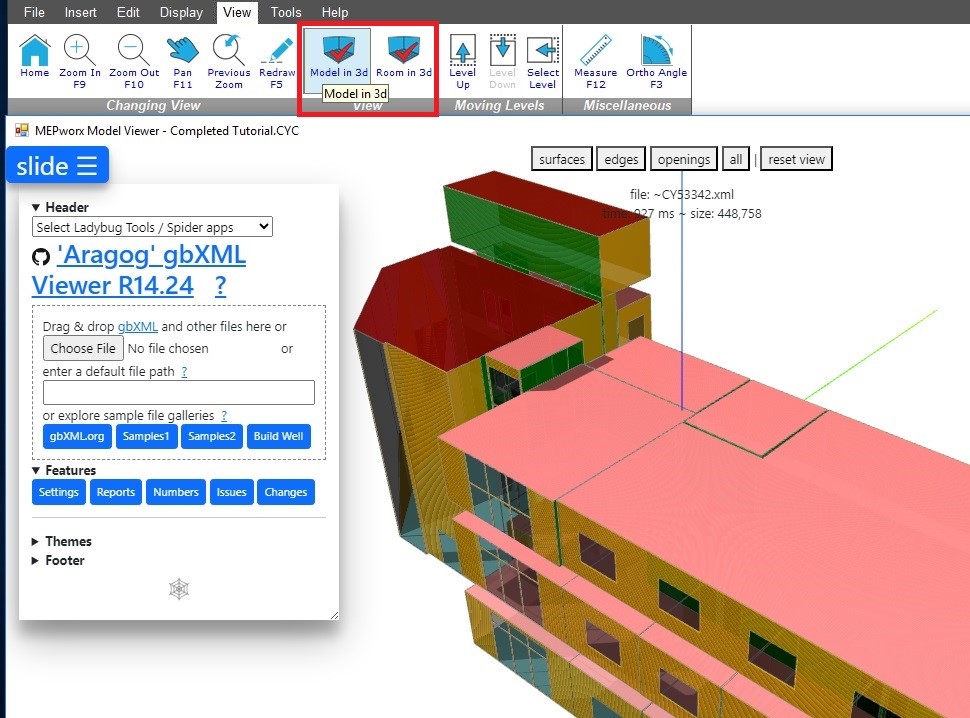

The Aragog Viewer can be selected for either the whole building model, or a just single room from the Building's 'View' ribbon.
