With the introduction of Revit 2021 came some new enhancements to realistic views. To further improve these takes only a few small changes to the default Graphics Display Options.

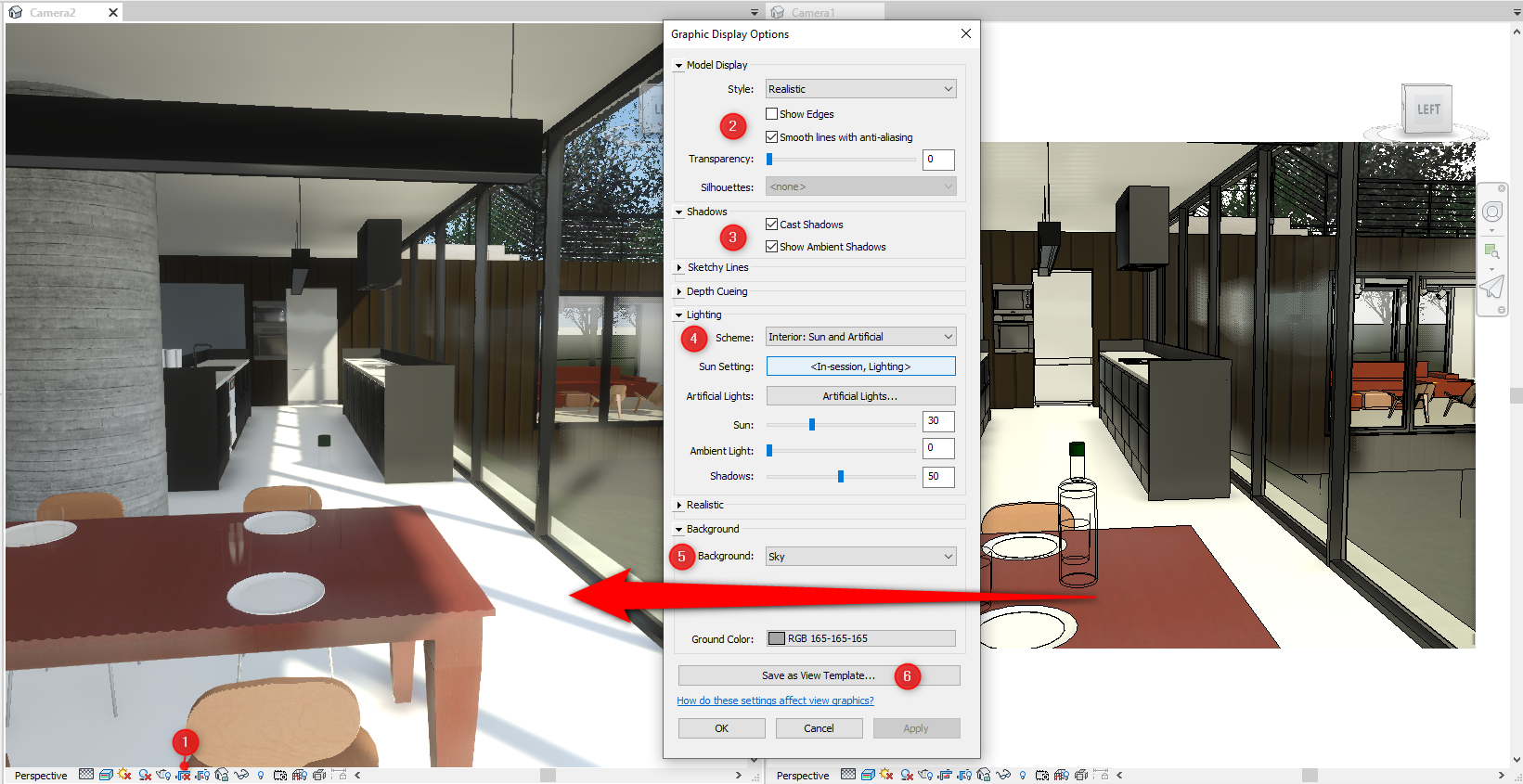

In the example below, view Camera2 is a copy of Camera1 and has the following settings to make it look more realistic:
- Do Not Crop View
- Untick Show Edges and tick Smooth Lines with anti-aliasing
- Tick Cast Shadows and Show Ambient Shadows
- Set lighting Scheme to include Sun and Artificial
- Set a Background
- These settings can then be saved as a View Template

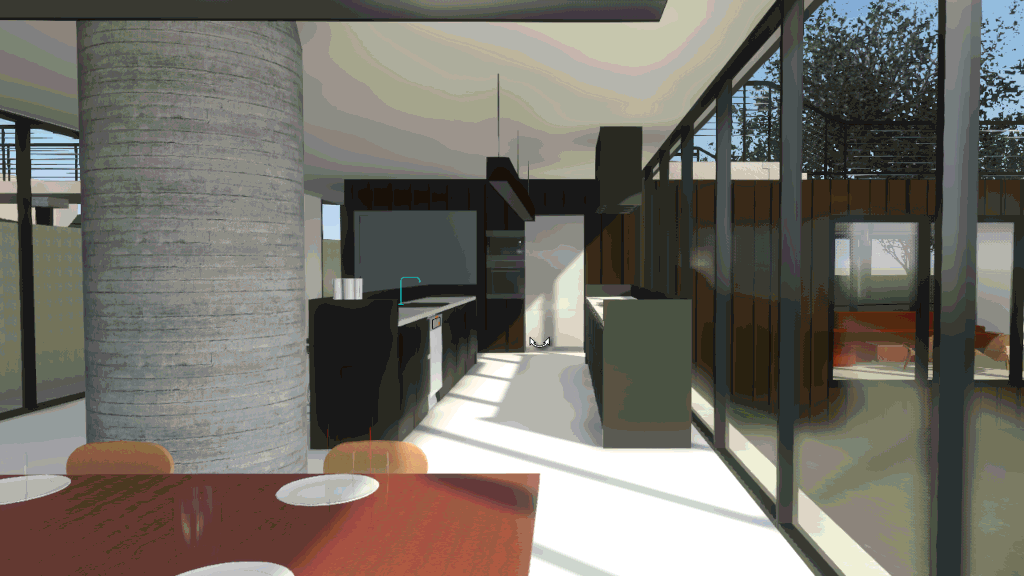

You can then use the navigation tools to move around the project:
