By Garry Stockton
In Revit 2024, when using the Align tool, you can now choose how surface patterns are aligned by selecting either ‘Entire Surface’ or Selected Face’ options. If you select ‘Entire Surface’, the pattern will be aligned across the entire surface, creating a seamless and consistent appearance. On the other hand, if you choose ‘Selected Face’, each face of the element can have its own pattern alignment, allowing for improved flexibility and customisation. So, the choice between these options depends on your specific design needs and preferences.

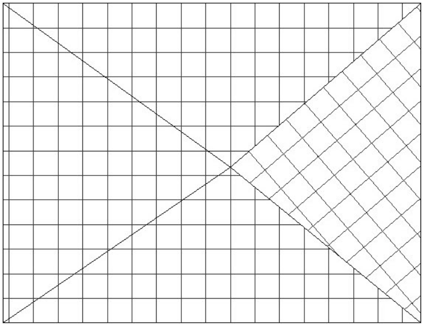

Align selected face.

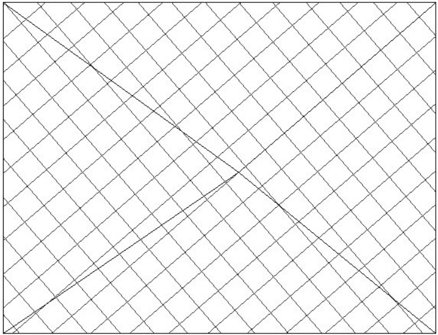

Align entire surface.
