By Martin Phelps
Draw the “Wall” at the required angle, as shown in Figure 1.

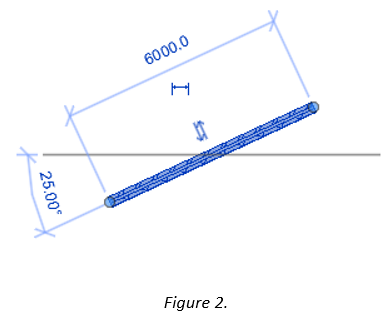

Once the “Wall” has been drawn, its angle may be changed by selection of the wall and editing the angle as required by over typing the angular value, as shown in Figure 2.
Or “Rotate” the “Wall” using the “Rotate” command.

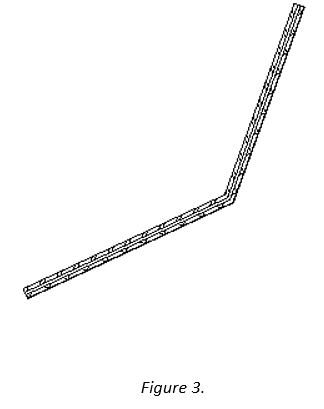

Draw the next “Wall” from one of the ends of the first wall, as shown in Figure 3.

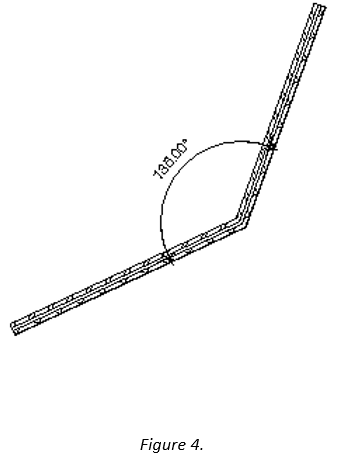

Add an “Angular” dimension between the centre lines of the “Walls”, as shown in Figure 4.

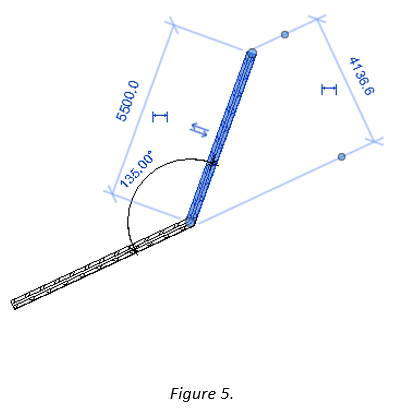

Select the “Wall” that requires the change of angle, from the dimensions shown, select the angular dimension value, as shown in Figure 5.
Note: - Depending on how many objects are in the model, additional dimensions may be displayed.

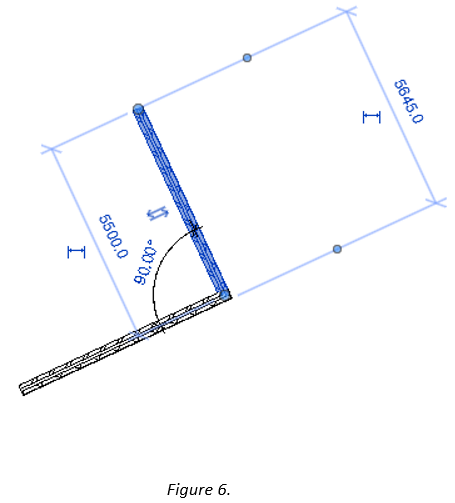

Over type the angle with the new required value, as shown in Figure 6.
As an alternative “Model Lines” could be drawn and the angle may be changed as required. Walls could then be created using the “Pick Line” command with in the “Draw” panel of the “Walls” tool.
