By Garry Stockton

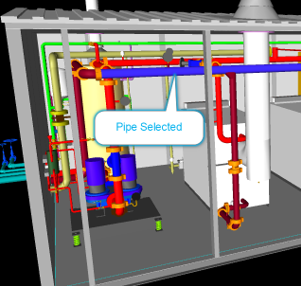

If your Navisworks Model has a series of pipes running gas or fluid, you may want to identify each of them using different colours rather than tagging them. Simply select the element you want to change, as shown below.

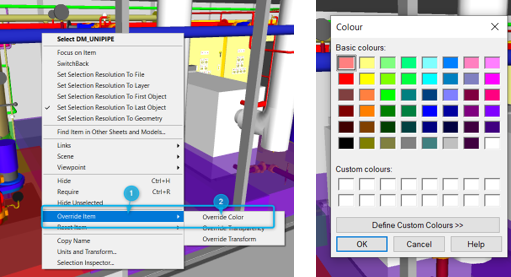

Right click on the object and a drop-down menu appears. Pick Override item and you get options, select Override Colour and the colour chart appears.

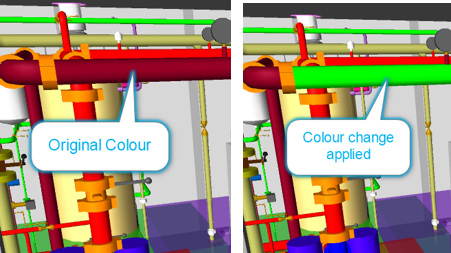

Once you have chosen your colour, select Ok. See below for impact.
