By David Crowther
Question:
How do you change the logo used in the top left of the MapThat Admin Forms?
Answer:

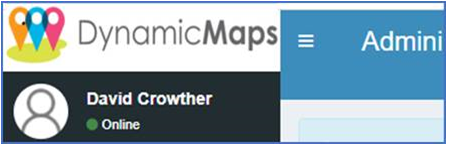

The logo being shown in the top left corner of the MapThat Admin Forms is a configurable item.
To change the icon being used, this can be configured using the SDS Reference Code lookup tables.

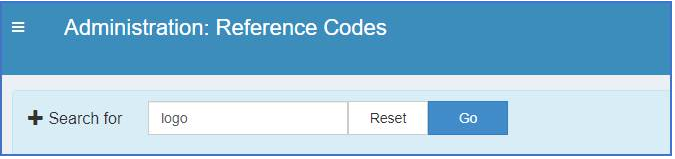

In the MapThat Admin Forms, choose Administration > Reference Codes > and in the Search options, search for the word ‘logo’.
This will filter the SDS Reference Code results to find the configuration setting that we need.
Choose the Pencil icon, next to the Reference Code that you will update,
… and this will make the values editable.
Here you can simply type the following format in order to reference the new image/logo:
/ApplicationName/folder/image.type
e.g.
/MapThatAdmin/Images/logo.jpg
Once you save the changes,

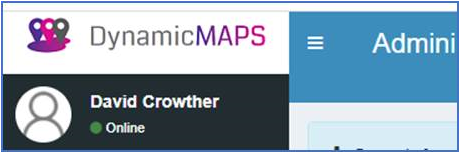

….the logo being used in the top left of the MapThat Admin Forms will be updated.
