Information, especially in the cabinet layout, can look small when you have scaled your cabinet layout to fit the title frame and therefore scaled the attribute information.
Individually you can right click over a component or symbol and select Attributes > Attribute Size

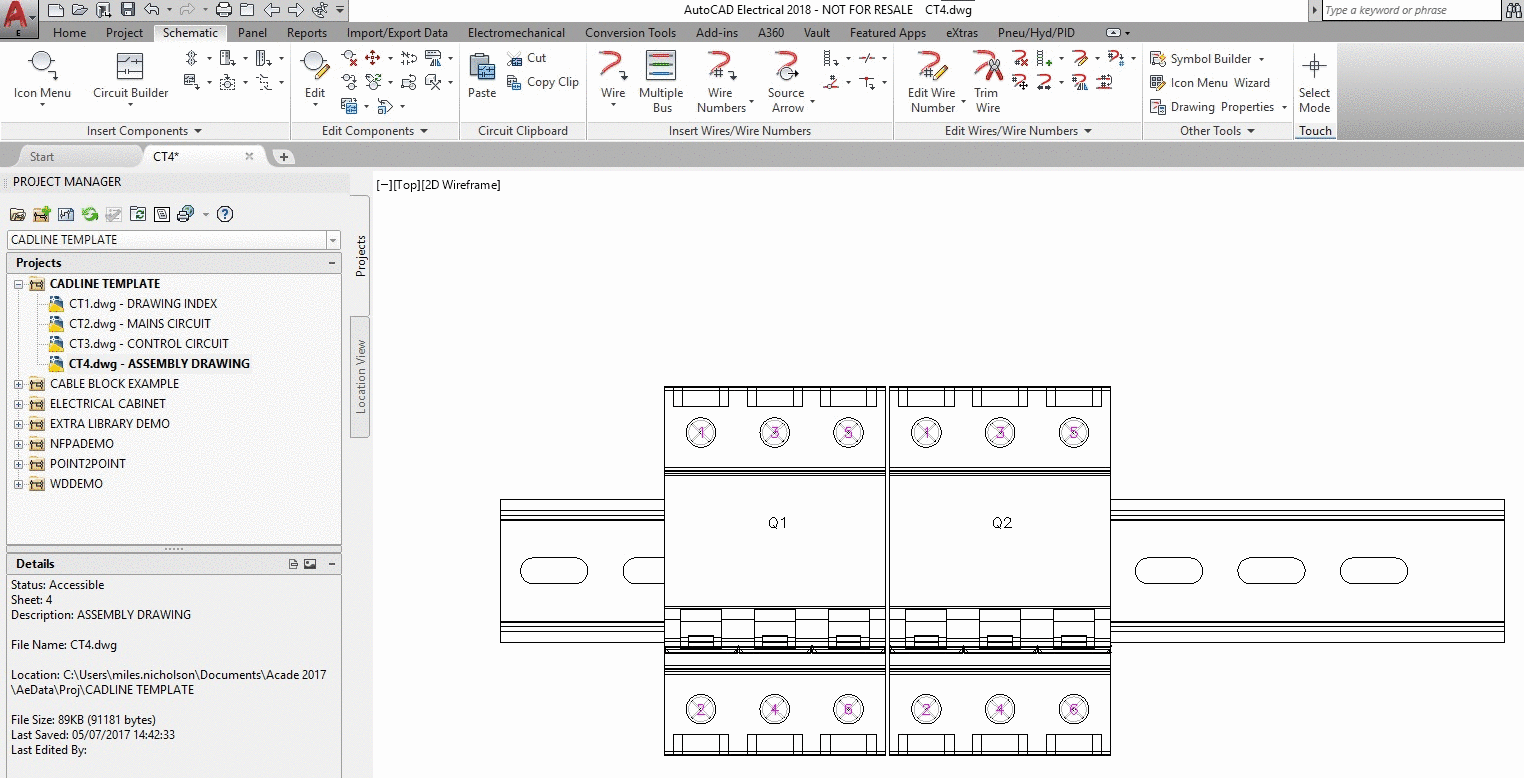

“However the above clip shows how multiple objects can have their attribute text size changed using the command Change Attribute Size.”
