By Dennis Collin

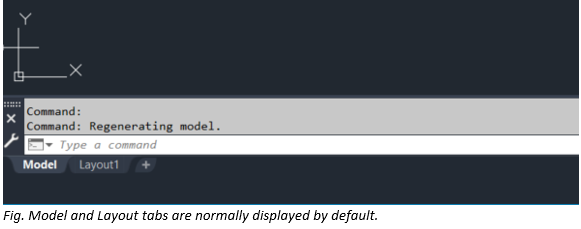

A recent question I had from an AutoCAD user was that they didn’t have a model space and layout tab showing on their computer, which made it challenging when adding views to a sheet.

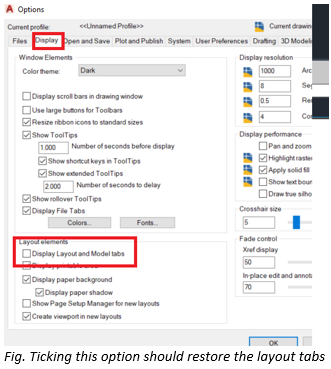

This is usually caused by the tabs being disabled in the Display section of the options dialogue box.

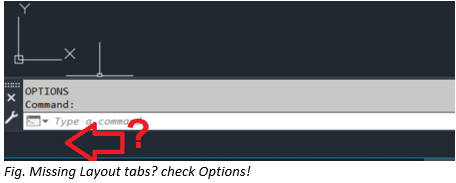

Simply type in ‘Options’ and check that Layout and model tabs have been enabled. Clicking OK should now result in the tabs being displayed.
