By Miles Nicholson
This command is applicable to all AutoCAD verticals as well.

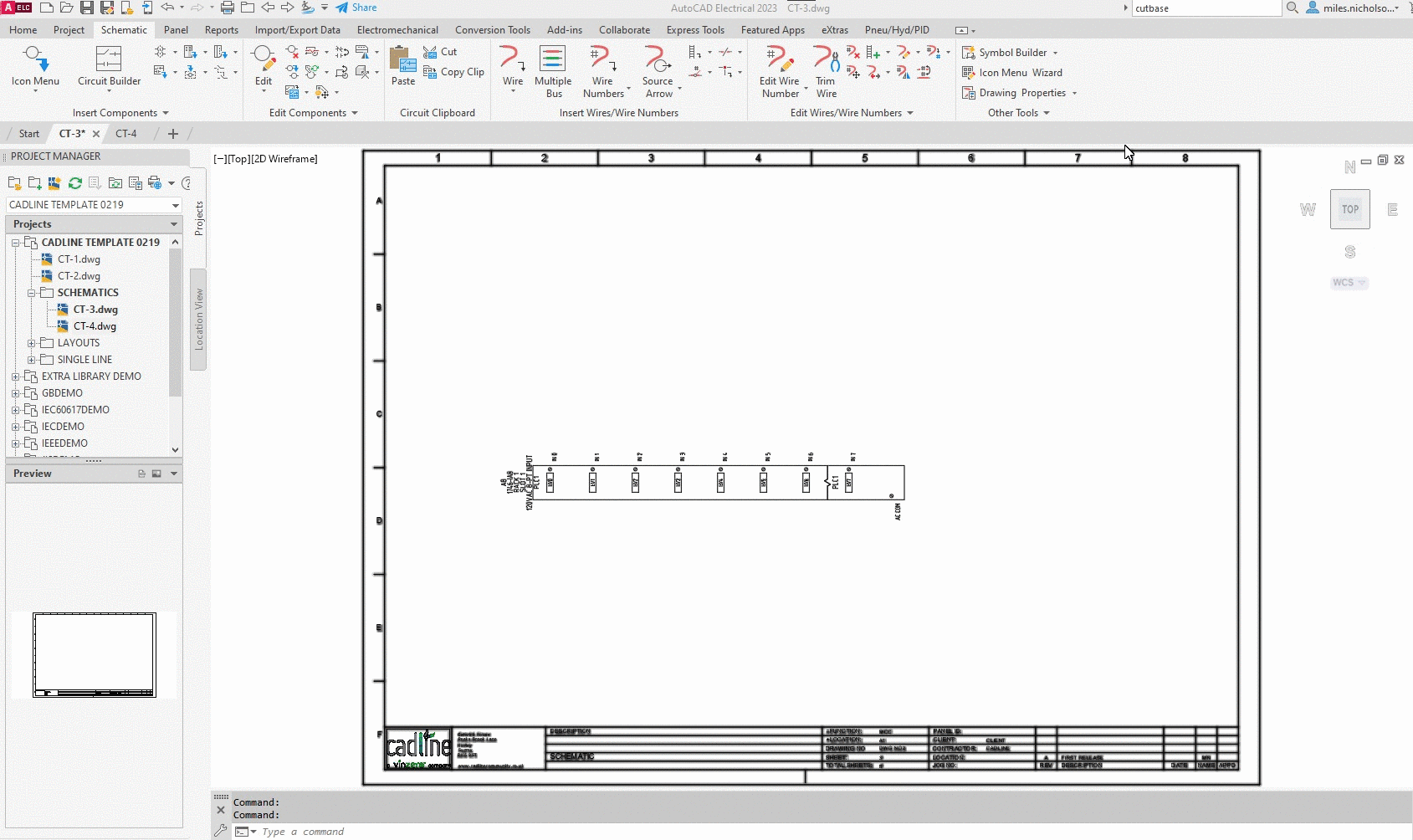

The new CUTBASE command copies selected objects to the Clipboard, along with a specified base point, and removes them from the current drawing. This saves time in comparison with the previous workflow of Copy with basepoint, cut & paste.
- Select Home tab > Clipboard panel >
Cut with Base Point
- Select the base point on the drawing
- Select the objects you want to cut, and press Enter [8 ]
- Use PASTECLIP to specify the insertion point when pasting the objects into other drawings
