by Chris Smith
Introduction
Autodesk Vault provides a powerful way to manage design data, ensuring consistency and control over AutoCAD files. One of the key features in AutoCAD is block attributes, which allow users to embed metadata directly into drawings. When combined with Vault, these attributes can be efficiently managed and synchronised to improve workflows and maintain accurate documentation.
What Are Block Attributes?
Block attributes in AutoCAD are dynamic text fields within a block that store specific information such as part numbers, descriptions, dates, or project details. These attributes can be extracted and linked to file properties and/or external data sources, making them ideal for integrating with Autodesk Vault.
What are the benefits of Using Block Attributes with Vault?
- Centralised Metadata Management: Vault ensures that attribute data remains consistent across multiple drawings throughout the project/Vault with Vault property mapping, ensuring the correct data is present within all the files in your projects.
- Automated Synchronisation: Vault can be configured to update attributes automatically, reducing manual entry errors. Using Vault tools like Lifecycles, categories, and rules, Metadata can be shared and updated automatically throughout the life of the project.
- Enhanced Searchability: Attributes stored in Vault properties can be used to quickly locate and filter drawings. Some data can only be found by opening the files. With Vault property mapping to and from AutoCAD attributes we can search this data inside of Vault removing the need for manually opening files to check and verify data.
- Improved Workflow Efficiency: By linking Vault properties to AutoCAD attributes, engineers and designers save time when updating title blocks and other key drawing information.
How to Link AutoCAD Block Attributes to Vault Properties
(Note: You must have administrator level access in Vault to make these changes in Vault)
Define Block Attributes in AutoCAD
- Create a block with attribute definitions using the ATTDEF command or the Define Attributes button in the Inset Tool ribbon.
- Assign meaningful tag names for each attribute (e.g., "DRAWING_NO", "PROJECT_NAME").
Map Attributes to Vault Properties

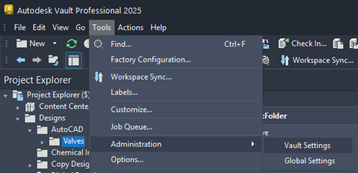

- In Vault, navigate to the Administrative Tools menu and select Vault Settings

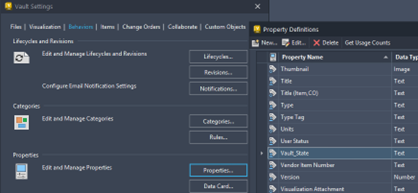

- Under the Behaviours tab, select the Properties button to create custom properties that will map your block attributes.

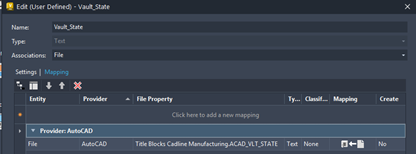

- Use Vault’s property mapping feature to link these properties to the corresponding AutoCAD block attributes. The file containing the attributes should be checked into Vault prior to this step as the file will be used to link the attributes to the Vault property.
Use Vault's Attribute/Property Update Tool
- Vault Workgroup and Vault Professional allow for automatic property updates between files managed by Vault and the Vault application properties if the properties have been mapped.
- Run the Update Properties tool in Vault to ensure attribute values are updated based on the latest metadata stored in Vault, ensuring the latest and correct data is used in drawing documents.
Best Practices
- Standardise Attribute Names: Consistency in naming conventions simplifies mapping and reduces errors.
- Leverage Vault’s Lifecycle Management: Ensure attributes are updated during drawing check-in and lifecycle transitions with Vault jobs/Actions.
- Automate Where Possible: Use scripts or Vault’s API to streamline attribute synchronisation. Arkance offer AutoConnect that will cover many of these automation workflows.
- Keep Vault Properties Clean: Avoid unnecessary custom properties to maintain efficiency and clarity.
Conclusion
By integrating AutoCAD block attributes with Autodesk Vault, design teams can enhance data management, improve efficiency, and reduce errors. With proper setup and best practices, this integration ensures that important metadata remains consistent and accessible, ultimately leading to a more streamlined and organised workflow.
