Introduction: Stacked Wall Alignment
When creating masonry stacked walls you need to make sure that the blockwork and brickwork etc are properly aligned. In the illustration below the stacked brick and block walls on the left do not align. This is fixed by changing the Offset from Wall Centreline to Core Face Exterior – right illustration. The wall layers now line through.

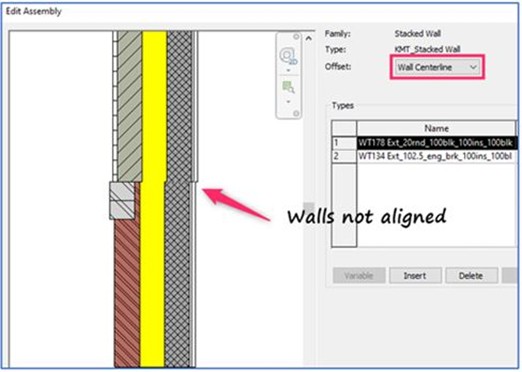

Stacked Wall Assembly – Not Aligned

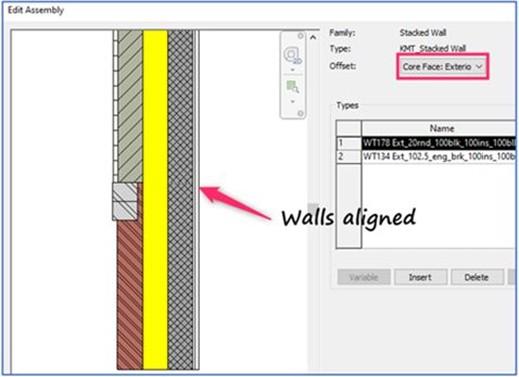

Stacked Wall Assembly – Aligned

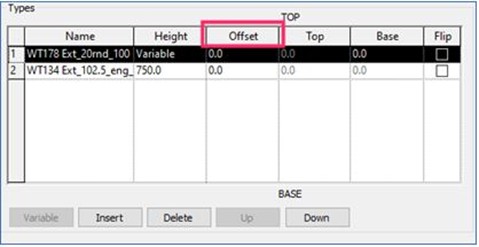

To get stacked walls to align you will sometimes need to use the offset tool in the Edit Wall Assembly dialogue box.
Edit Wall Assembly
