By Dennis Collin
In Revit 2020 a new object type was introduced called Path of Travel Lines which are useful to display the time it would take to vacate a building.
Previous posts I have made on the feature can be found here:
One feature that was lacking before the Revit 2020.2 update was the positioning of ‘way points’ to fine tune or customise the shape of the travel path.

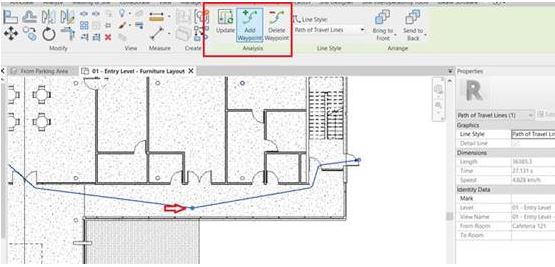

This limitation has now been addressed and when validating a path of travel objects way-point creation and modification tools are now available on the ribbon. Way-points can be added, deleted or moved to suit and travel times and schedules will update accordingly.
