By James Philip
Once you have created a walkthrough in Revit, to edit the camera path, height or direction can be difficult.

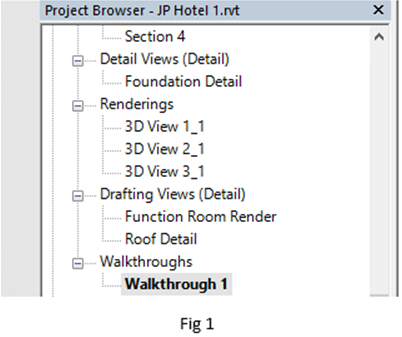

To edit the path first select the Walkthrough in the project browser. (Shown in Fig 1)
Then navigate to the view used to create the walk through path and make it the current view.

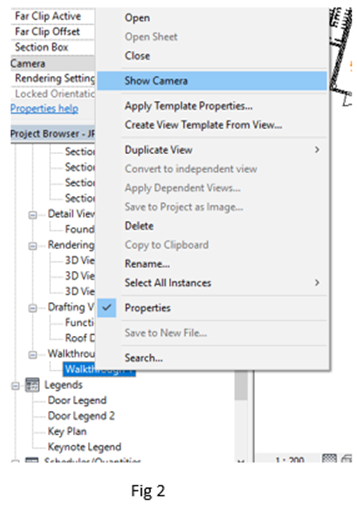

Then navigate to the walkthrough in the browser and right click on it and choose Show Camera from the menu (as shown in Fig 2).

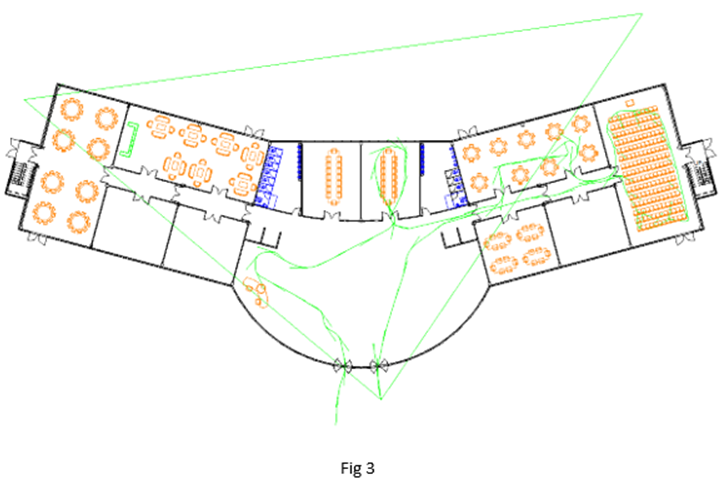

The path is displayed (see Fig 3).
