By John Flanagan
Enabled Cutting in View Option

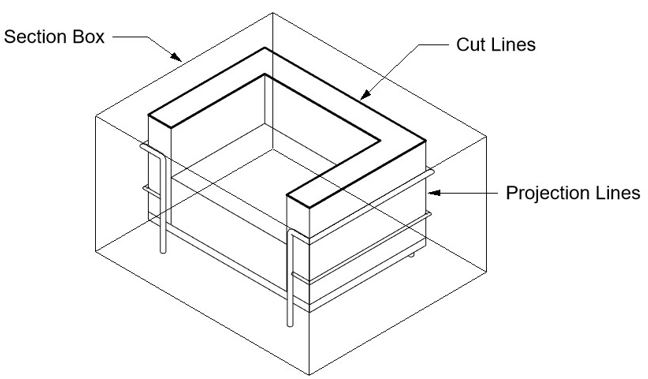

Revit 2022: Some categories in Revit 2022 are not “cuttable”. That means the line weight will always be set to projection, regardless of the cut plane in the view range. You cannot even set a cut line weight in object styles.

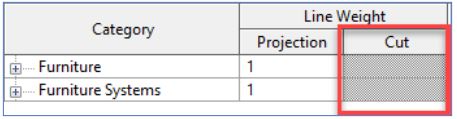

Revit 2023: Four new categories are now cuttable: Furniture, Furniture Systems, Plumbing Fixtures and Speciality Equipment. You can set a cut line weight for each of them. To enable this feature to work, check the box “Enable Cutting in Views” inside the family properties.
