by John Flanagan

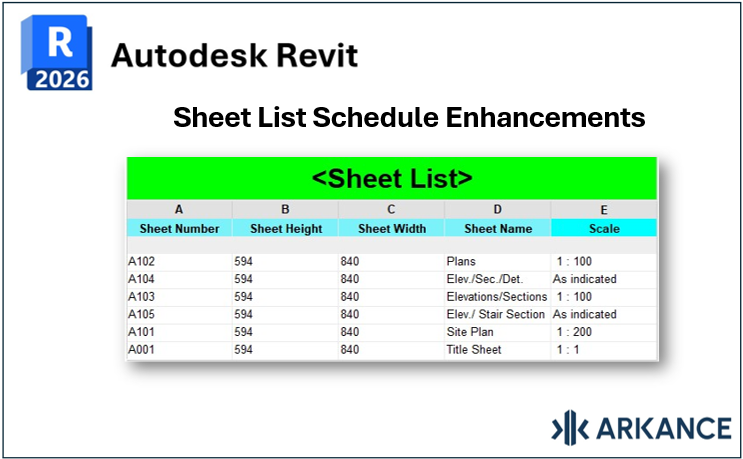

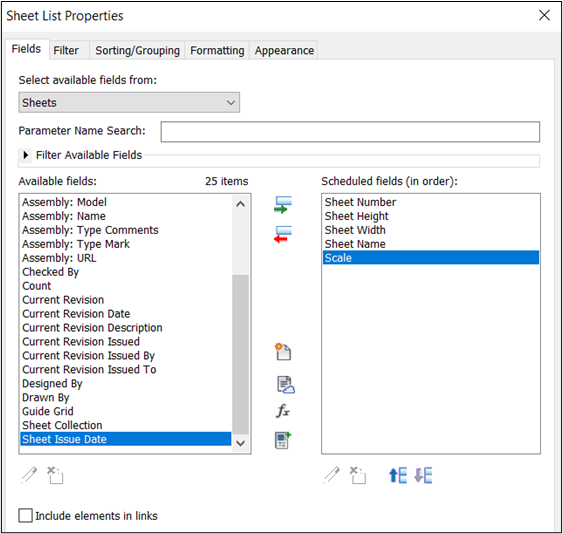

Sheet Lists now support new built-in fields such as Width, Height, and Scale, enabling the creation of more detailed drawing registers. The new parameters are added just as previous parameters are added from the field options in the Sheet Properties dialogue box.

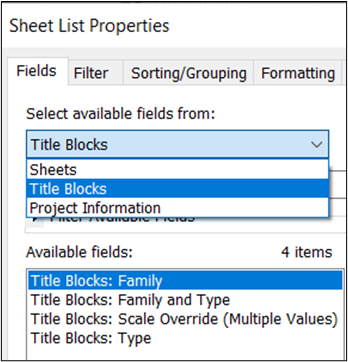

Additionally, when you use the drop-down to select available fields you now have the option to add Title Block parameters to your sheet schedules as well. The drop-down lists all Title Block parameters available in your project including built-in and custom title blocks that you have added to your project.

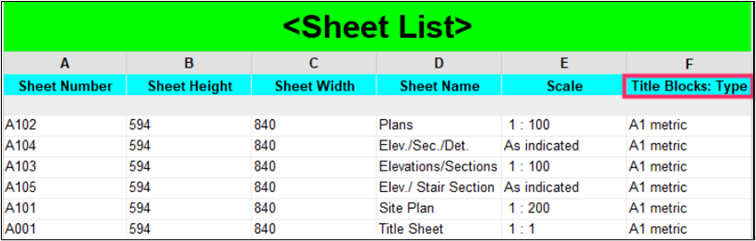

You can now verify if the sheets have the correct title block within the schedule.
A particularly smart addition is the Primary Title Block parameter, which ensures schedules pull data from the correct title block - especially useful for firms working with sheets that contain multiple title blocks. If your practice uses only one title block per sheet, you can likely ignore this feature, but it’s a thoughtful step for more complex workflows.
