Wire/Pipe types can now be synchronized for all wires/pipes in the same equipotential network with the same signal codes across all drawings. If you change the wire/pipe type on, the source wire/pipe, AutoCAD Electrical will prompt you to change the wire/pipe type across the entire equipotential network. An Update Signal References is recommended to refresh the numbering of the destination wires/pipes.
Right-click over a source wire/pipe which has a destination network on another drawing(s)
Select
Highlight the new wire/pipe
Select
Right-click or press Enter if you don’t wish to select any further objects

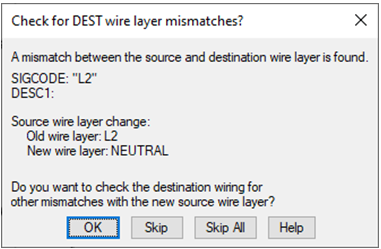

The discrepancies will be listed:
Select

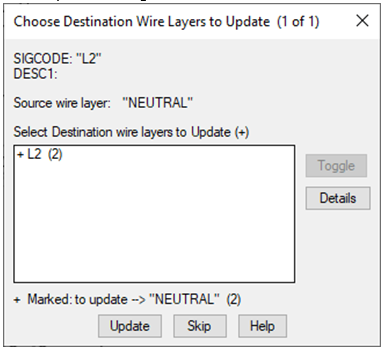

The required changes will be listed:
Select
To update the wire/pipe numbering on the destination network. Select Update Signal References
