If you're new to the concept or just looking to sharpen your skills, this guide is designed to give you a solid foundation in parametric modelling. We’ll cover the basics, highlight key features, and provide some practical tips to help you get started on the right foot.
What is Parametric Modelling?
Parametric modelling is a method of designing 3D models where the geometry is driven by parameters. These parameters can be dimensions, constraints, or other attributes that control the shape and size of your model. Unlike traditional modelling methods, where each change requires manual adjustments to multiple parts, parametric modelling allows you to make changes by simply altering the parameters. This approach offers flexibility, efficiency and precision, especially when dealing with complex assemblies.
For example, imagine you're designing a bracket. With parametric modelling, you can set up parameters for the bracket's length, width and hole spacing. If you need to change the length later, you simply update the parameter and the model automatically adjusts, maintaining all your design intent.
Getting Started with Parametric Modelling in Autodesk Inventor
1. Creating a Sketch

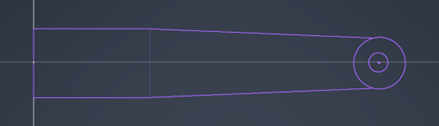

Every parametric model starts with a 2D sketch. Here, you can draw basic shapes like lines, rectangles, or circles. The key to parametric modelling is applying dimensions and constraints.
2. Applying Dimensions and Constraints

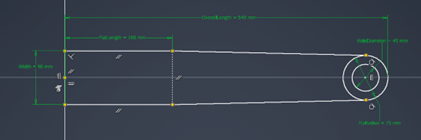

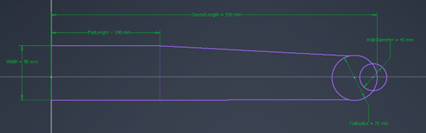

After sketching, you’ll want to add dimensions by selecting the Dimension tool. Click on a line or shape and specify its length or diameter.
Constraints are equally important—they control the relationships between different parts of your sketch. For instance, you might want two lines to always be parallel, or a circle to be centered on a point. Constraints like Coincident, Parallel and Tangent ensure that your design behaves predictably when parameters change.
3. Building the 3D Model

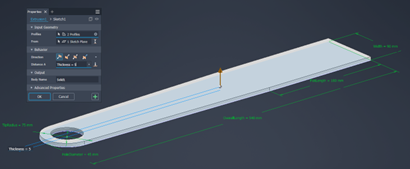

Once your sketch is complete and fully constrained, it’s time to turn it into a 3D model. Use tools like Extrude, Revolve and Sweep to give your sketch volume. Here’s where the magic of parametric modelling really shines. If you need to adjust any aspect of your model, you can go back to the sketch, modify the parameters, and watch as the 3D model updates automatically.
4. Add intelligence to parameters

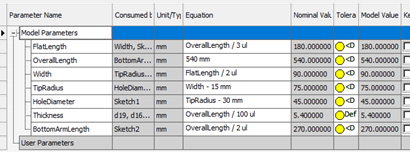

Now we have our model we can edit the parameter values in the parameter window (fx) to add intelligence to our model, driving parameter values from other parameters.
Tips for New Users
1. Start Simple
It’s tempting to jump right into complex models, but starting with simpler designs helps you grasp the basics without getting overwhelmed. Practice creating basic shapes and applying constraints until you’re comfortable.
2. Use Parameters Effectively
Parameters are the backbone of parametric modelling. Take the time to name your parameters meaningfully (e.g., Width or HoleDiameter) instead of sticking with generic names like d0, d1, etc. This makes it easier to understand and modify your model later.
3. Leverage Inventor’s Tools
Autodesk Inventor offers a range of tools designed to make parametric modelling easier. The Parameter dialog (found under the Manage tab) allows you to view, edit, and even create equations between parameters. This can be incredibly powerful for automating design changes.
4. Practice with Assemblies
Once you’ve mastered single-part models, try your hand at assemblies. In an assembly, each component can be a parametric model, and you can define relationships (Joints and constraints) between them. This is where the true power of parametric modelling comes into play, as you can create highly complex assemblies that adapt to changes with minimal effort.
5. Stay Organised
As your models become more complex, organisation is key. Use folders in the Model Browser, and keep your sketches clean by deleting unnecessary lines or dimensions. This will save you a lot of headaches down the road.
Conclusion
Parametric modelling in Autodesk Inventor is a game-changer for anyone looking to create precise, adaptable and efficient designs. By understanding the basics—like creating sketches, applying dimensions and constraints, and building 3D models—you’ll be well on your way to mastering this powerful tool.
Remember, the more you practice, the more intuitive it becomes. Start with simple projects, gradually incorporating more complexity as you grow more comfortable with the software. And don’t forget to leverage Autodesk Inventor’s vast array of tools to make your modelling process as smooth and efficient as possible.
