by Miles Nicholson

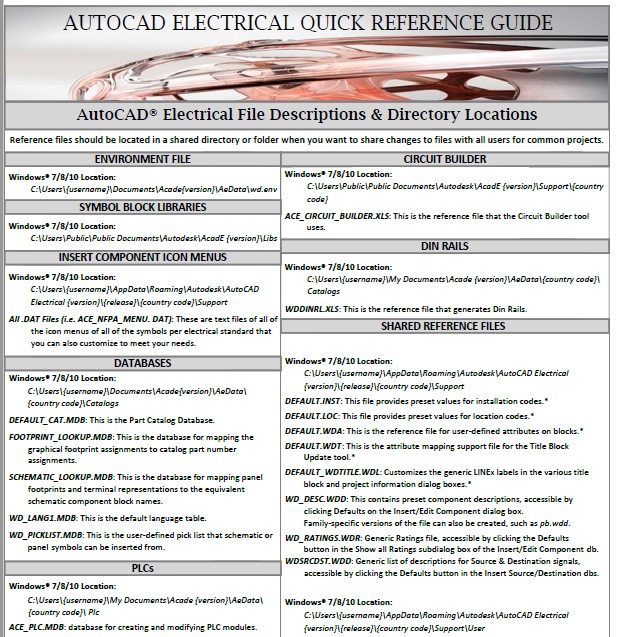

Autodesk® has produced a Quick Reference Guide for AutoCAD® Electrical and it is available to download here. It provides a quick reference to AutoCAD® Electricals’ file descriptions & directory locations, family codes, attribute definition meanings, symbol naming convention & numbering replaceable parameters. Its not exhaustive but it does suffice for the majority of instances.
It’s definitely one to print off and keep close by!
Credit: Autodesk®
