By Dennis Collin
SACOOR is a useful Add-in to help AutoCAD users extract the coordinates for elements such as Polylines, Points or Blocks to and then export them to an external file. This file is a simple CSV format file that can imported into Excel or any other database, alternatively it can be referenced into AutoCAD as a data link and read as a table.

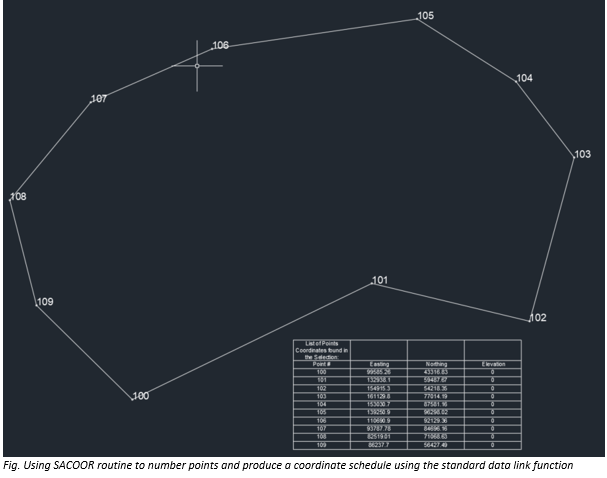

The app asks for a starting number and places a reference number for each point to coordinate the drawing to the schedule table.

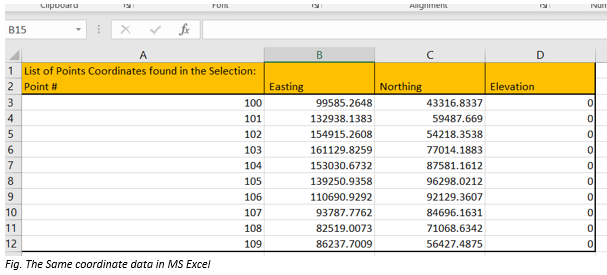

Alternatively the data can be viewed in a product like Excel.
The SACOOR function is free to use and can be downloaded from the App store here:
https://apps.autodesk.com/ACD/en/Detail/Index?id=5884728623382416658&appLang=en&os=Win32_64
(Login required)
