By Garry Stockton
Tag and Schedule Elevation Parameters for MEP Elements

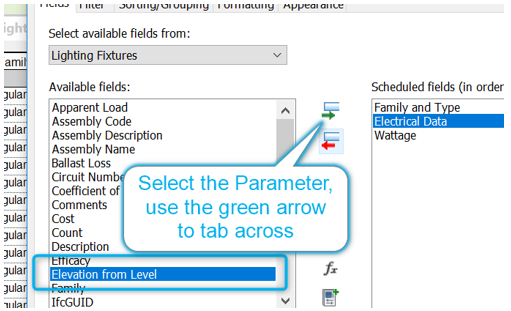

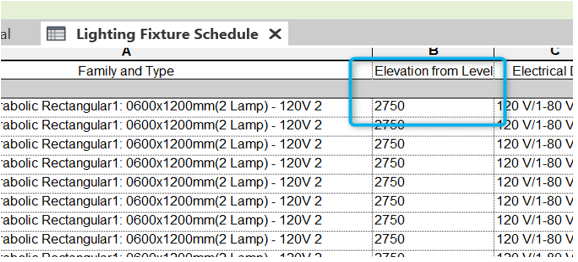

A useful, but not commonly known feature, that was introduced back in Revit 2020 allowing you to schedule the Elevation Parameters. This can be used for any Element for a wide variety of MEP families and used in tags and schedules. For example, you can create a schedule that shows the elevation from level for the various electrical fixtures in a project. You can also use any of the following:
- Mechanical Equipment
- Plumbing Fixture
- Lighting Fixture
- Lighting Device
- Sprinklers
- Electrical Fixtures
- Electrical Equipment
- Data Device
- Communication Device
- Fire Alarm Device
- Nurse Call Device
- Security Device
- Telephone Device
- Specialty Equipment
