By Miles Nicholson
In order for the weblink information to be shown, the information has to be within an attribute rather than XDATA. Weblink information is stored as XDATA attached to a symbol unless the symbol has a WD_WEBLINK attribute.
You can either add the weblink attribute within each required symbol within the library or add the weblink attribute on the fly on a “as and when basis”.

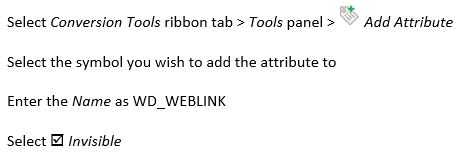

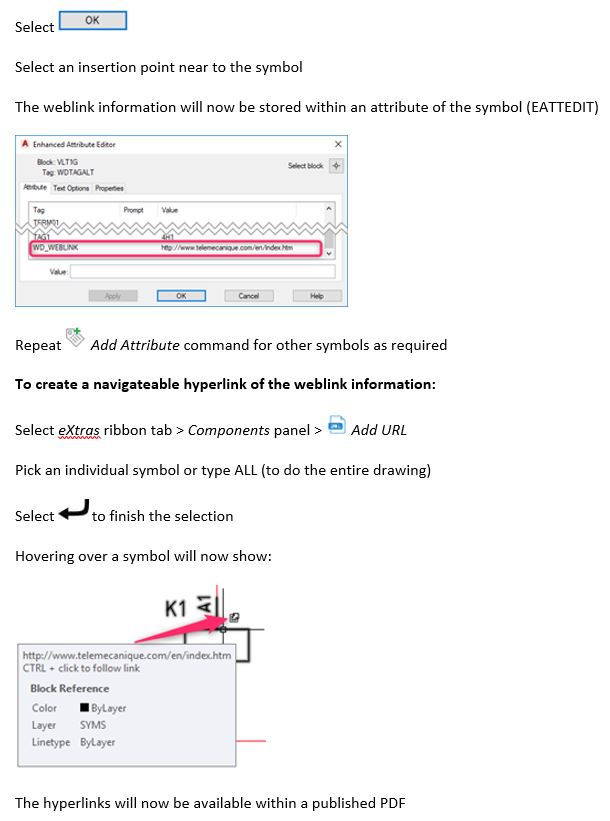

To add the weblink attribute on the fly on a “as and when basis”:
The value will be automatically populated from the XDATA value (if a MFG and CAT has been assigned otherwise it will be a blank value)
