By Miles Nicholson
Did you know you can compare the differences between your schematics and your layout drawings and then report on the potential issues?
Select the Reports ribbon tab >
Select Component Exception

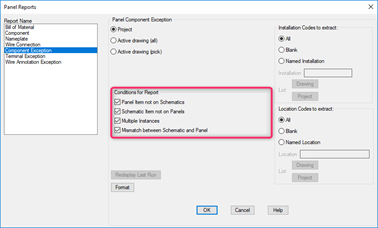

You then have various selection options that you can choose dependent upon what you wish to report:
Conditions for Report
- Panel Item not on Schematic
Lists the panel components that do not have related schematic components - Schematic Item not on Panels
Lists the schematic components that do not have related panel components - Multiple Instances
Lists the panel components that appear to be duplicates - Mismatch between Schematic and Panel
Lists the data mismatches between the panel and schematic representations of a component

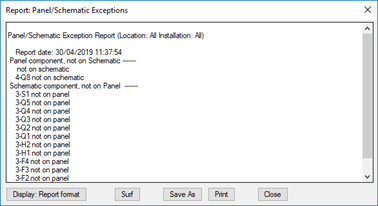

Example report:
You can easily navigate to the issue using
