By Miles Nicholson

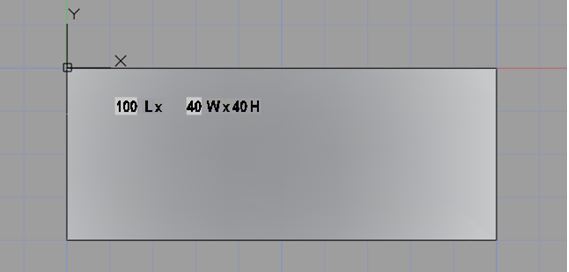

The Cadline Localiser contains dynamic trunking and DIN rail. There are 12 trunking commands depending on height. You can apply a shade to the trunking by editing each dynamic block thus meaning that when used, the trunking looks realistic:

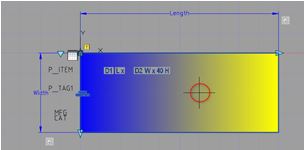

Browse to the \Libs\Panel_mm\Generic\ directory and open the respective FP_DUCT3D* block.
Select
Select Home ribbon tab > Draw panel > Gradient (Hatch can also be used).
Select an internal pick point e.g.
Select the Pattern type e.g.
Select the colours e.g.
Select to save the changes
