By Simon Taylor
When we are working with assemblies in Fusion 360, we have a tool which can make identifying parts easier with colour.

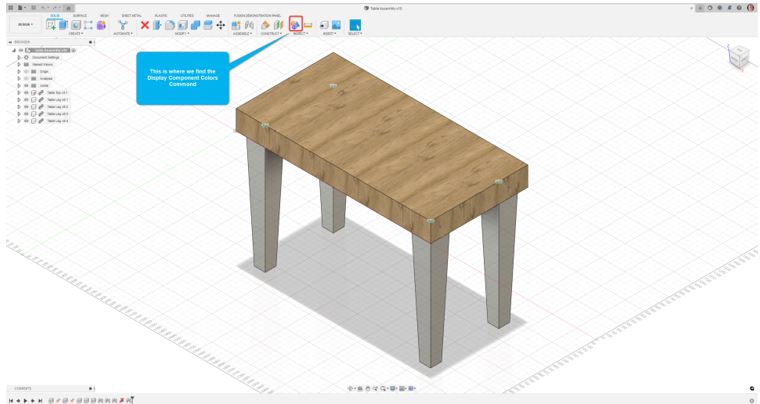

This is where we can find the Display Component Colors :-

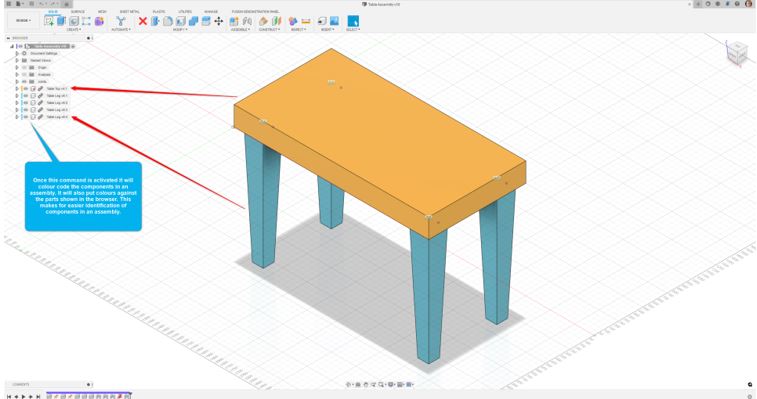

Once the Display Component Colors command is activated it will colour code our assembly, see below:-

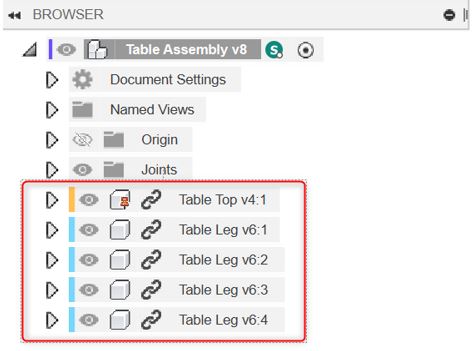

Not only does it change the colour of the components in the assembly, but it also puts the colour next to the components in the browser, see below:-
To deactivate the Display Component Colors, all we need to do is press this icon again. This will revert the model back to its previous appearance settings.
