By Dennis Collin
AutoCAD has for many years has had a set of additional commands known as Express Tools. These commands can be very useful in doing certain tasks

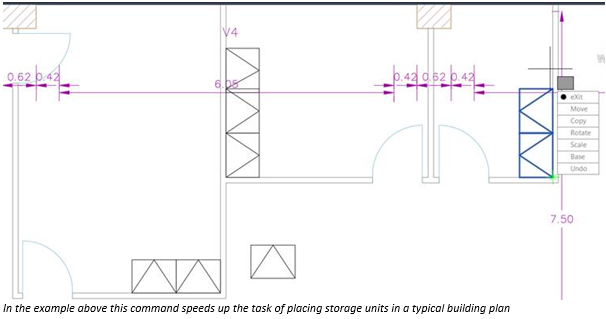

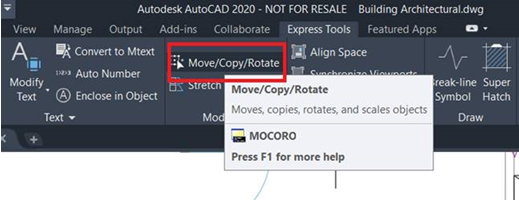

One of these combines three standard commands Move, Copy and Rotate into one function. Located in the Express Tools tab within the ribbon, this command makes the process of editing a drawing much easier.
The keyboard shortcut ‘MOCORO’ is too lengthy in my opinion, but this can easily be adjusted to ‘MCR’ or similar by editing the ACAD.PGP shortcut file.
The Express Tools makes this process easier to which I will cover in a future post.
