By Garry Stockton
Did you know you can Hide or Delete CAD layers inside your inserted DWG?

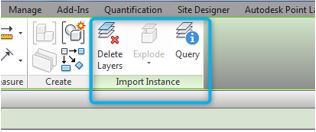

Link a DWG file into your project, select the DWG (blue box will appear around the imported file). The following ‘Import Instance’ panel appears on your Revit ribbon.

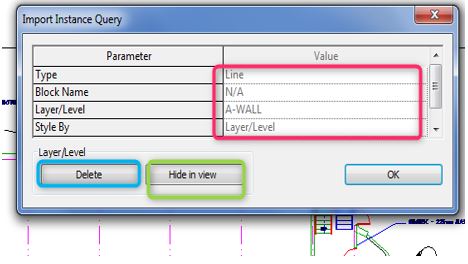

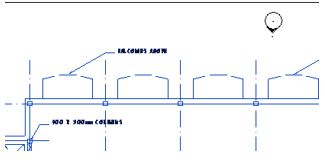

Select the Query Tool, then pick a layer/line to hide or delete and OK, they disappear.
