Revit 2024: Adding Symbols
Symbols are 2D annotations that you can place in any view to highlight certain features or specific information. For example, placing a North Arrow symbol on a sheet view to indicate True North.
To create a Symbol in your View:
1. Go to the Annotate tab > Symbol panel > Symbol Button.
2. Select your Symbol element from the Type Selector.
3. Click and place the Symbol in your View.

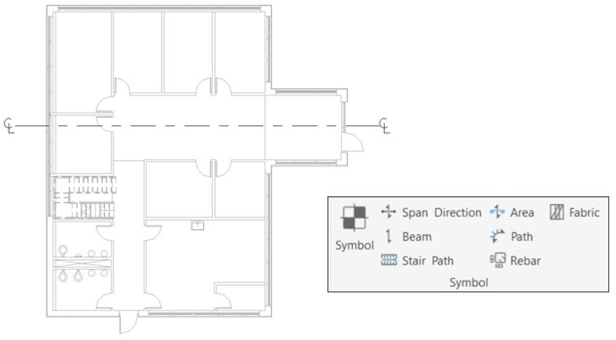

On the floor plan shown here, a CL (Centre Line) symbol marks the centre of the corridor.
