by Dennis Collin
Revit 2021 was recently released and one of the new features is the ability to turn Section Head Marker annotations to follow the orientation of the section line.

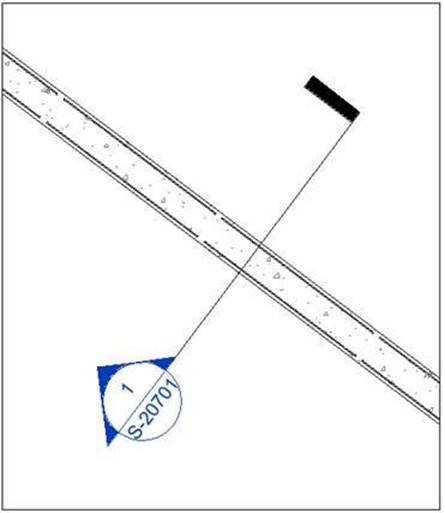

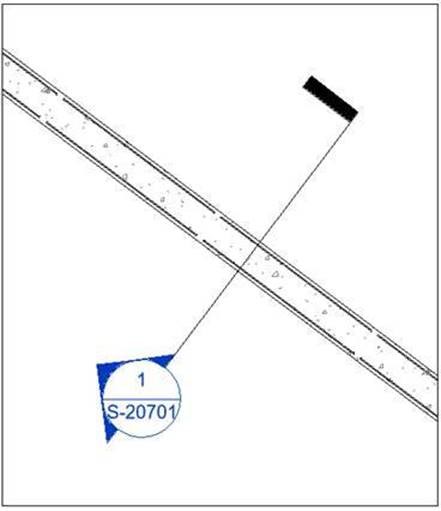

Fig. From this Revit 2020 and previous releases to this in 2021.

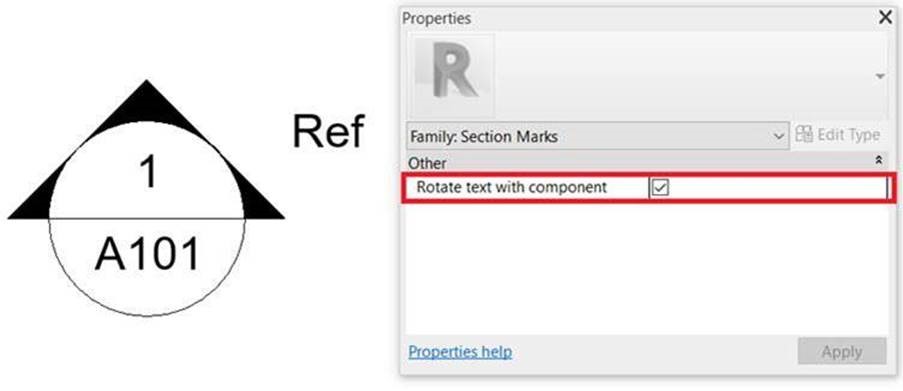

To achieve this, simply set the section head label family to rotate with component. This improves the look of the drawing in my view. Hopefully in a future release elevation markers will get a similar treatment!
