by John Flanagan
Introduction

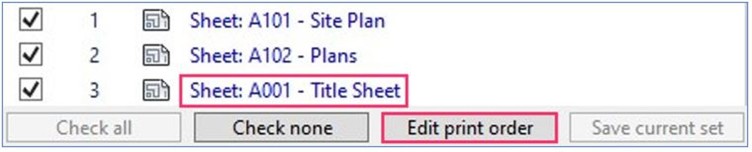

To edit the print order of sheets in Revit, open the print dialog, select the views/sheets you want to print, click "Edit Print Order", choose your desired sorting method (Browser Organization, Sheet Number, or Manual Order), and then click OK.

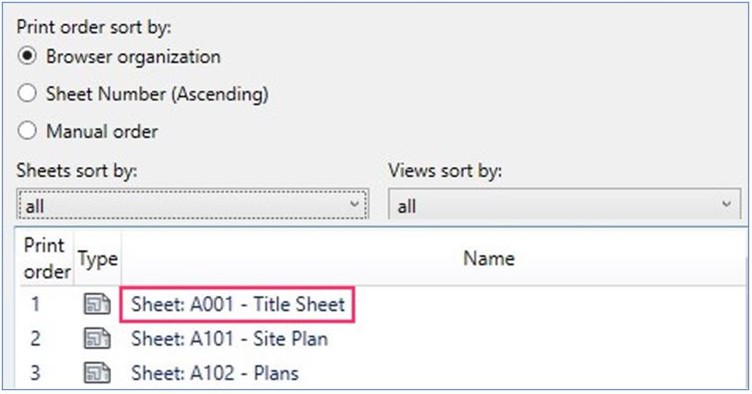

Choose Sorting Method:
Browser Organization: Revit will use the order of the views and sheets in the Project Browser.
Sheet Number (Ascending): Revit will sort the sheets by their sheet number in ascending order.
Manual Order: You can manually drag and drop the views and sheets to arrange them in your desired order.
Click OK: After selecting your desired print order, click "OK" in the "Edit Print Order" dialog and then click "OK" in the Print dialog to proceed with printing.
Title Sheet A001 moves to the top. A nice innovation to help organise our sheets for printing.
