By Miles Nicholson

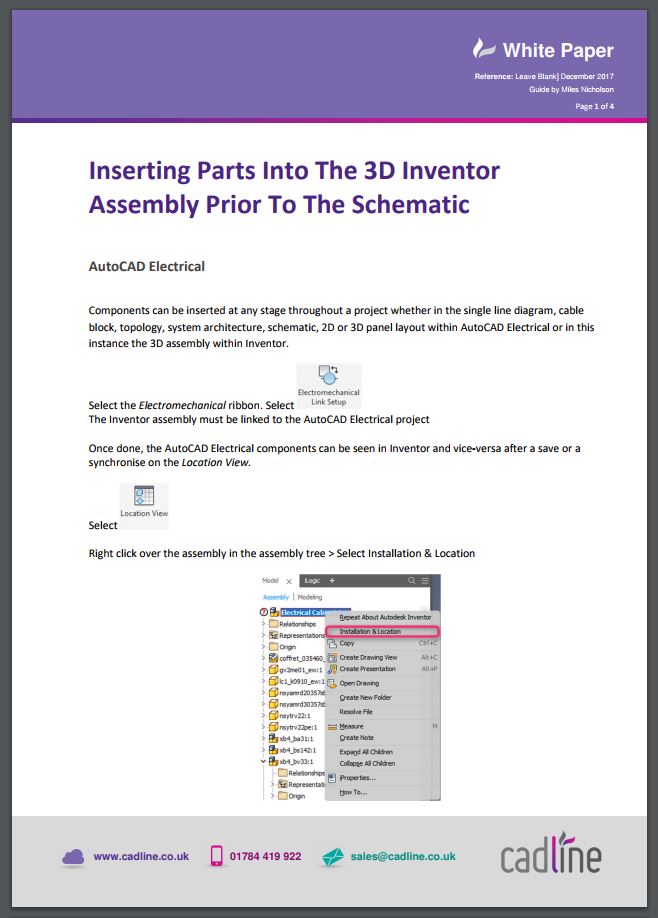

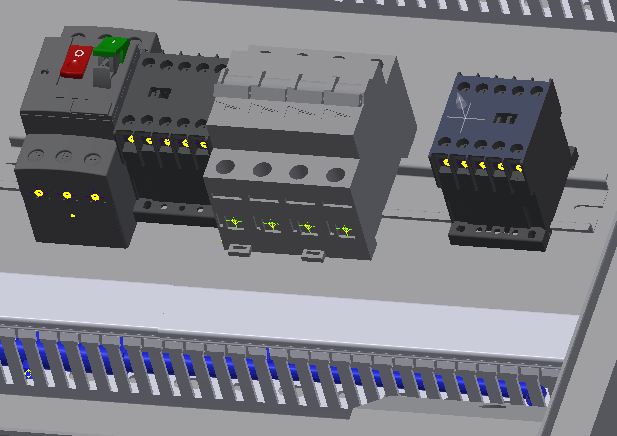

Components can be inserted at any stage throughout a project whether in the single line diagram, cable block, topology, system architecture, schematic, 2D or 3D panel layout within AutoCAD Electrical or in this instance the 3D assembly within Inventor.
Within Inventor, this can either be from the AutoCAD Electrical integration or simply by inserting a part through the standard Inventor functionality and then subsequently associating it to an AutoCAD Electrical component retrospectively.
