by John Flanagan
Question
How do you create a drawing/sheet index?
Answer.

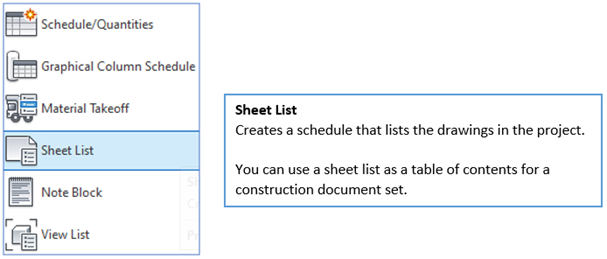

- Click View (pulldown) menu > New > Sheet List.
- Select the Fields to appear in the drawing list. Some typical fields include Sheet Number, Sheet Name, Checked By, Drawn By and Sheet Issue Date.
- To create user-defined fields, click Add Parameter.
- Specify the Fields, Filter, Sorting/Grouping, Formatting and Appearance options within each tab.
- Click OK.
- Drag the drawing List onto a sheet.
Tag: Drawing/Sheet Index Product: Revit Architecture
