By Anite Ramgi

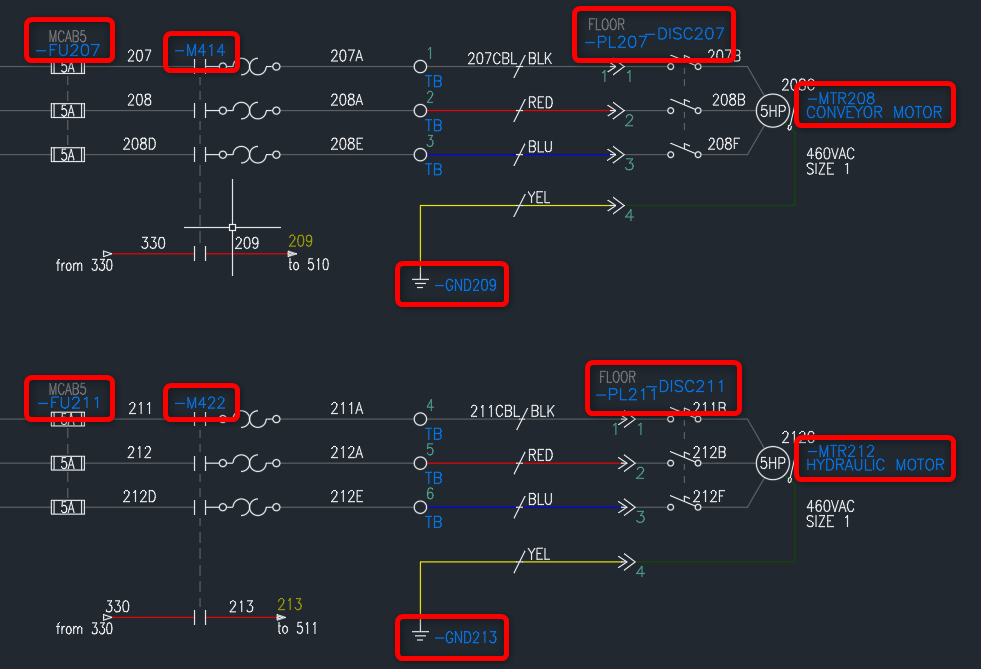

You have been sent drawings from a client or have been working on them, and you notice the component tags have a dash in front of them. This might not meet your company standards or you just don’t want them and would like them to be removed.

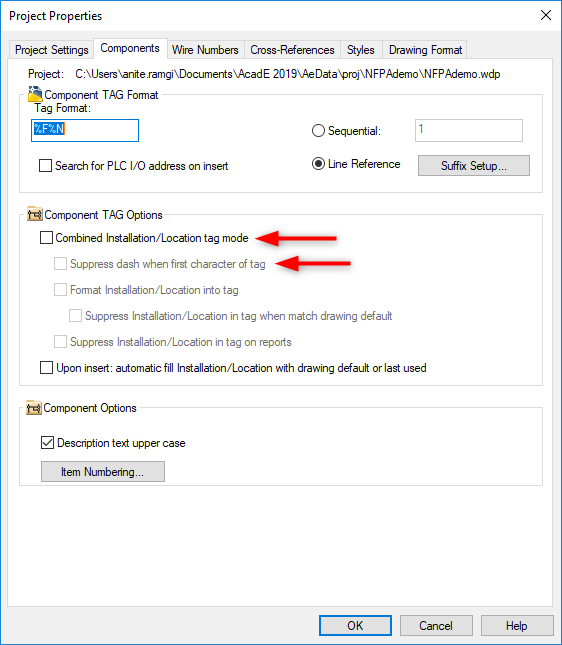

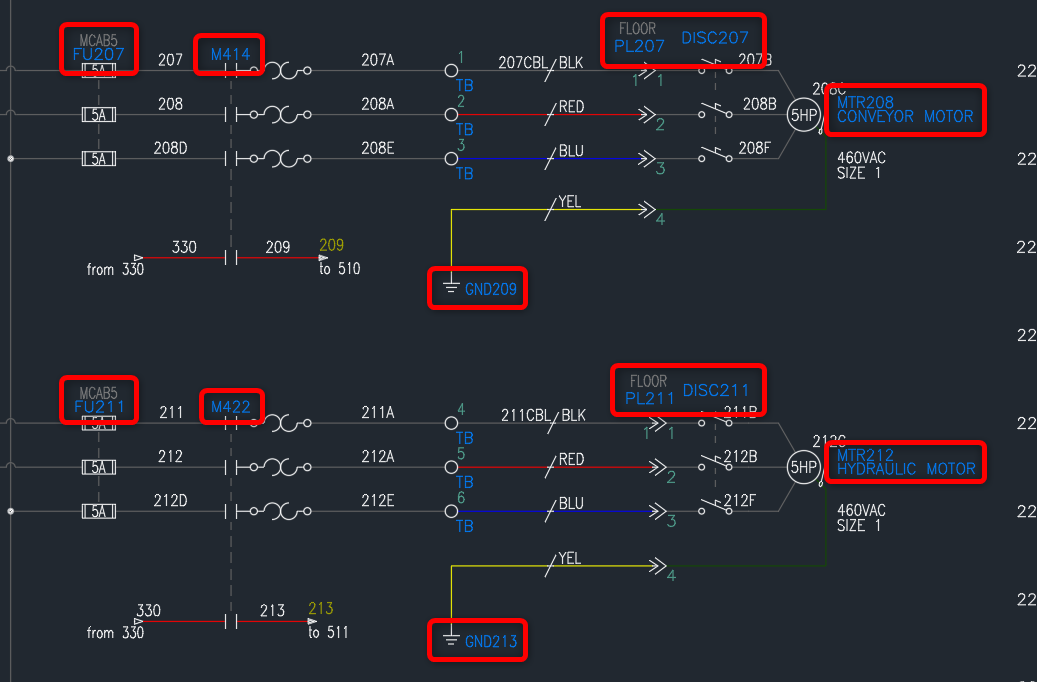

To remove these, go to Project Manager, right click on the project you are working on> Properties > Components tab> either untick Combine Installation/Location tag mode or tick Supress dash when first character of tag
