By Martin Phelps
Customising the “Block” Listing Table.
Following the previous blog, “Adding a “Block” Listing Table into a Drawing”, the inserted “Block” table can be customised to include only the required “Blocks” in the list.

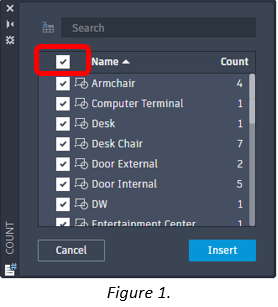

To create a custom “Block” list, remove the tick in box next to “Name” in the “Count” panel, as shown in Figure 1.
This will remove all the ticks in the boxes next to the “Block” names.

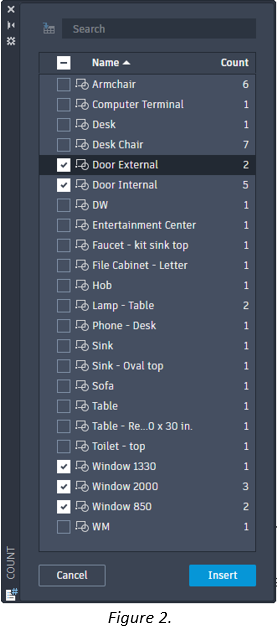

Tick the boxes to the left. “Block” names that are required in the customised “Table”, for example all doors and windows, as shown in Figure 2.

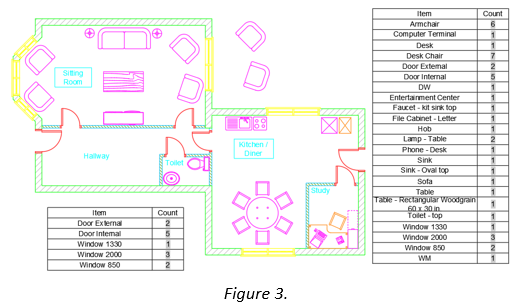

Select the “Insert” button to add the “Table” into the drawing, position as required as shown in Figure 3.
Multiple custom tables can be added to the drawing.
Note: - The tables will only “Update” to the new “Block” quantities if the file is “Saved” or a drawing “Regen” is initiated.
