by John Flanagan
Introduction

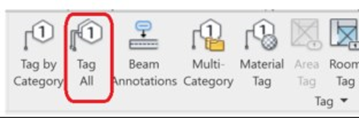

You can find the Tag All on the Annotation tab and the Tag ribbon.
To "tag all" in Revit, navigate to the "Annotate" tab, then click on the "Tag All" option within the "Tag" panel; this allows you to quickly add tags to all visible elements of a chosen category (like walls, doors, windows) within the current view, letting you select the specific tag type you want to apply to them.

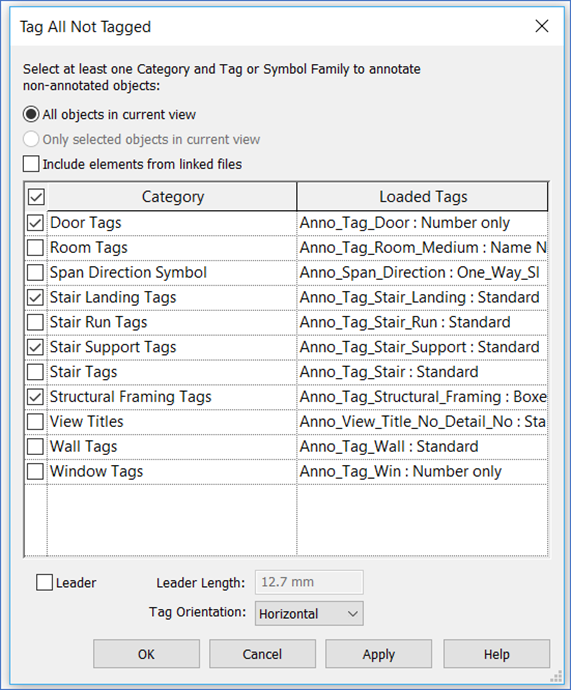

Tag All Not Tagged dialog box.
This function can be useful, for example, when you place and tag rooms in a floor plan view, and you want to see tags for the same rooms in a reflected ceiling plan (RCP) view.
Note: The desired tag families must be loaded into the project before using the Tag All Not Tagged tool.
Summary
Key points about "Tag All":
- Access: Go to the "Annotate" tab and click "Tag All".
- Selection: You can choose which category of elements to tag from the dialog box that appears.
- Visibility: Only visible elements in the current view will be tagged.
- Customization: You can adjust tag properties like leader length and orientation within the "Tag All" dialog.
