By Dennis Collin

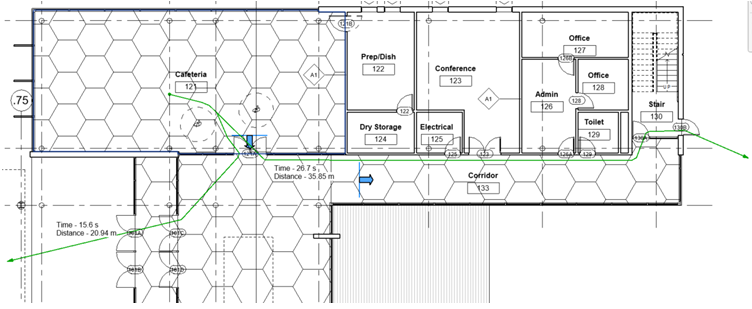

Revit 2022 has greatly enhanced the People Route analysis tools which now includes the ability to analyse multiple routes, as well as new family content to help perform route analysis tasks.
Previously released as an add-on, the tools in the People Flow Toolkit are now installed as part of the standard out of the box route analysis tools.
Functions include:
- Multiple Paths - Simultaneously creates multiple routes between points for a path of travel with a minimum separation distance.
- One Way Indicator - Places a family in the model to indicate the direction of travel. The family is respected by the path of travel calculations.
- People Content - Places a family in the model to represent occupancy of a space and to block path of travel lines.
- Spatial Grid - Places a room-based grid overlay to visualise spatial distancing in the room.
