by Garry Stockton

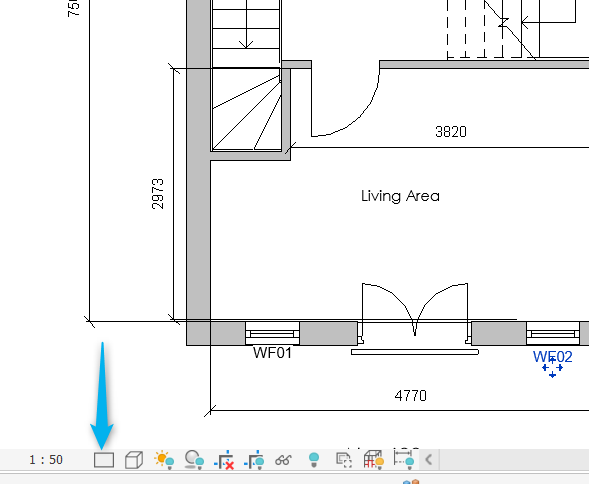

So, you’ve submitted your planning drawings and received your permission from the local council. The images below show a floor plan at the planning level of detail, so only blank wall detail is represented in purple for proposed construction. Using the Detail Level option at the bottom of the screen will change this to a detailed view.
From Course to Fine

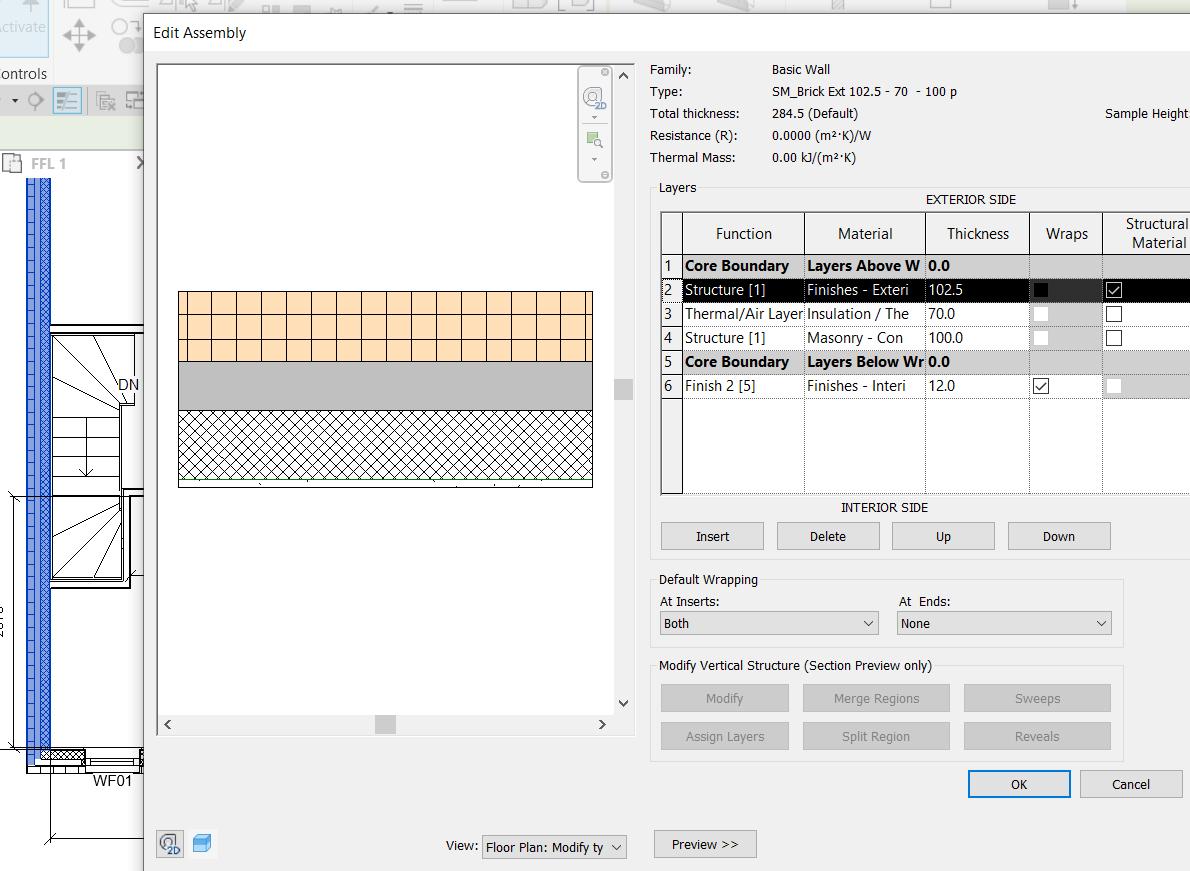

You can simply change the build-up of the wall to show your construction layers. Select the wall, Edit Type, Structure and then change the layers accordingly (See below)
