By Clint Brown
Inventor 2018 includes improved mesh handling capabilities and now fully supports mesh objects in the drawing environment.
When editing a view, users are now able to toggle Mesh features on or off under the "recovery Options" tab.

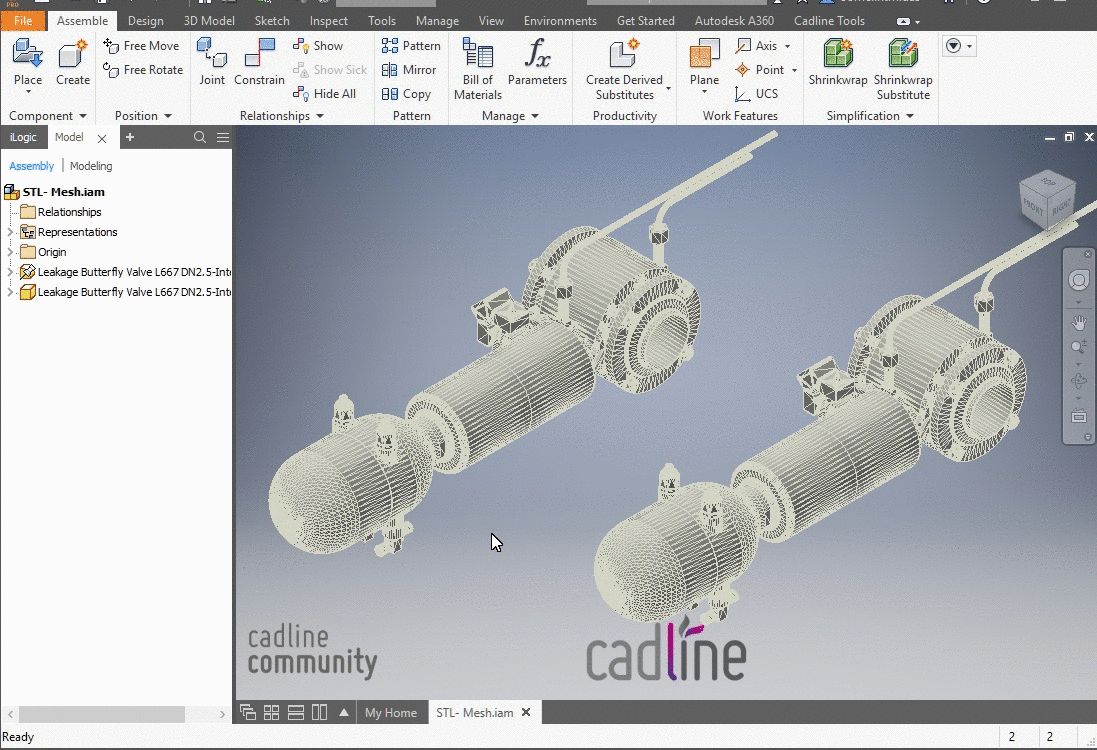

The animated GIF below shows complex Mesh features being constrained in Inventor 2018, it also shows a drawing being created of the Mesh features.
