By Anite Ramgi
I recently got a support call about AutoCAD Electrical not producing visualization files during Check-In.

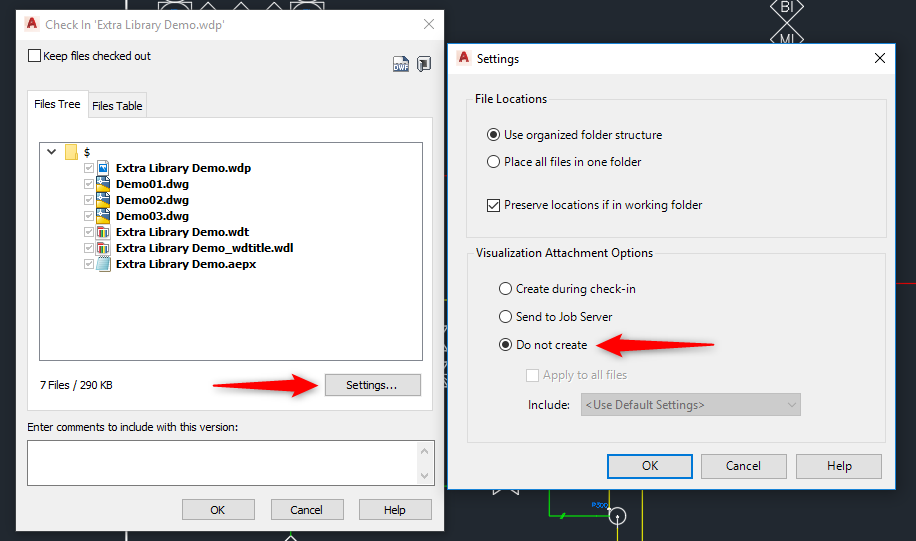

The fix is quite simple, when you Check-In the project/drawing, click Settings on the Check-In dialogue box. By default, the Visualization Attachment Options will be set to Do Not Create.

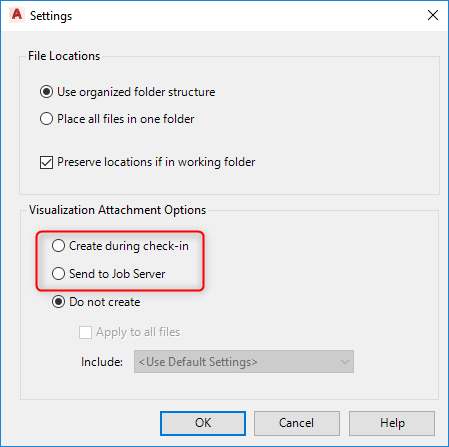

Change this to either Create during check-in or Send to Job Server. Setting either of these options will allow the visualization files to be created.
