With the release of AutoCAD Electrical 2024, we have released the Cadline Localiser 2024, which will operate with AutoCAD Electrical 2024, 2023 & 2022. Adding to the already long list of comprehensive functionality and content, the following features will be included in the new release. Further information on the benefits of the Cadline Localiser can be found in the overview:

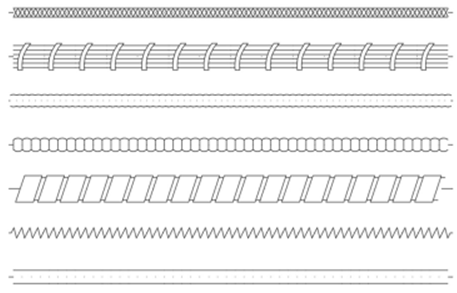

- Additional Complex Line Types: Specifically useful for 2D Harness creation (nail boards)
E.g. Braid, Bundled, Conduit1, Conduit2, Spiroband, ZigZag1, DoubleLine

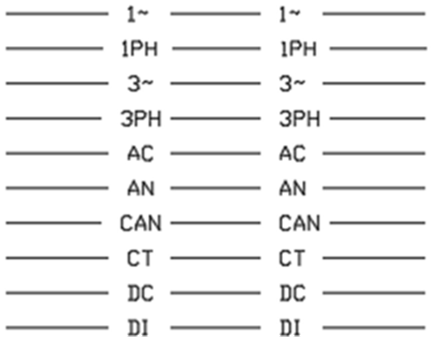

- Additional Simplex Line Types: Useful for all types of schematics to differentiate the wire/pipe type
- Additional WD Library Symbols: Further enhancing the wiring diagram library, new cable type 3 symbols have been added enabling the production of automatic cable drawings

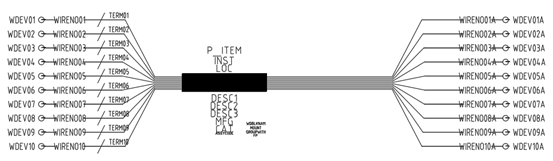

- Additional WD Library Symbols: Further enhancing the wiring diagram library, new connector tables have been added enabling connector tables to be automatically annotated with connector pin information. Typically used for harness-type type drawings
- Better conversion of Promis.E projects
- Pre-promise script
- Post-promise script
- Updated
PromisE to panel block command (ECTAEP)
- Improvements in the attribute mapping of panel components
- Signal Cross-Referencing Improvement: A new Style 6 has been added for cross-referencing wires
- Catalogue Content: LUMINEUX LIGHTING catalogue database has been added
- Minor corrections in extras.lsp file
